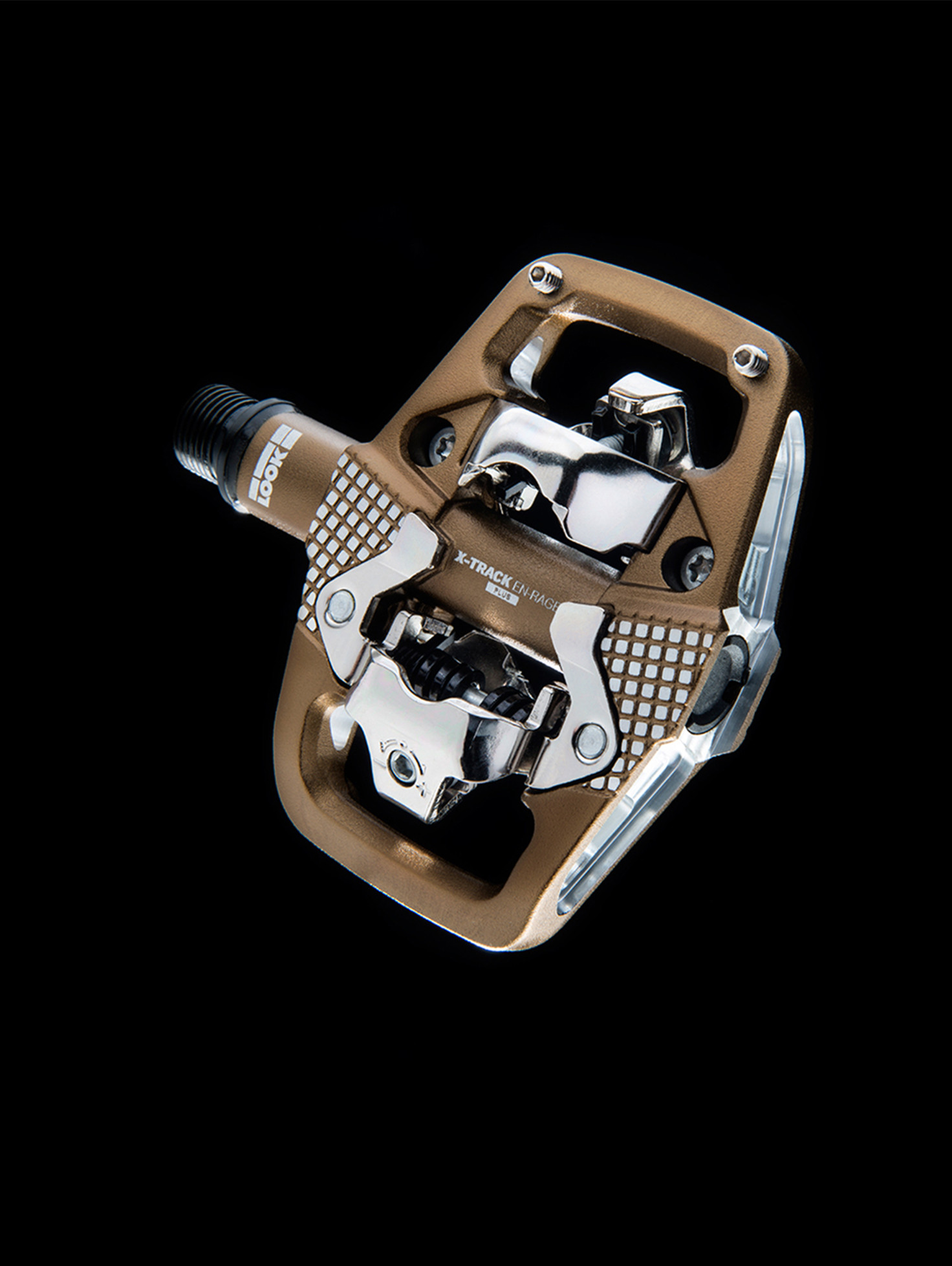

Why you'll love it?
Developed for the most extreme riding conditions
- An impressively wide contact area, even if your foot is not yet clipped in
- Consistent and durable clip in experience in all conditions thanks to the large areas of the pedal body
- A highly-reliable SPD mechanism no matter how extreme the conditions
Technical specifications
Spindle
| Spindle material | Chromoly + |
|---|
Body & platform
| Technology | X-TRACK |
|---|---|
| Body material | Aluminium |
| Platform area | 545 mm² |
| Platform width | 63 mm |
| Total stack height (pedal + cleat) | 16,8 mm (10,7 + 6,1 mm) |
| Q Factor | 53 mm |
Retension & cleats
| Retention | 6 to 14 |
|---|---|
| Cleats | Standard cleat included (easy cleat available separately) |
| Cleats standard | SPD compatible |
| Float angle | 6° |
| Release angle | 13° |
Weight & sizes
| Pedal | 210 g |
|---|---|
| Weight pair + cleats | 470 g |
| Cleats | 50 g |
YOUR MOST FREQUENTLY ASKED QUESTIONS ABOUT PEDALS & CLEATS
MORE INFORMATIONCleats
Think "X-TRACK"
Two cleat models are available for the X-TRACK RACE and X-TRACK EN-RAGE range series of pedals. The X-TRACK CLEAT is a standard version which allows for lateral clip out, while the X-TRACK EASY CLEAT offers a larger clip out range and multi-directional, lateral and angled release options. By choosing the correct cleat you can adapt your pedal performance to your needs and preference.
