E-765 OPTIMUM Metallic Blue Glossy
E-765 OPTIMUM Metallic Blue Glossy

E-765 OPTIMUM Metallic Blue Glossy

SKU | 24374

An electric blue on deep black paintwork takes the E-765 OPTIMUM Metallic Blue Glossy with ultralight FAZUA Evation motor to a whole new level. It handles almost like a classic road bike, even more so when you set aside the removable battery. Say yes to electrical assistance without saying goodbye to performance.

€4,799.00

E-765 OPTIMUM Metallic Blue Glossy is no longer available online

Buy in shop
WHY YOU'LL LOVE IT?

Why you'll love it ?

Forget those last reservations about e-bikes

  • A highly-versatile bike thanks to a tailored geometry, a removable battery and carefully selected components
  • Ride in unmatched comfort: 3D Wave seatstays for 15% more flexibility and a frame made from high modulus carbon fibers
  • Made by LOOK components to enhance the high performance frame and fork, specifically tailored to the requirements of e-bike riding
Learn more about the E-765 OPTIMUM

Technical specifications

Made by LOOK
Seatpost LOOK LS3 Alloy 27,2x350 mm
Saddle FIZIK Antares r7
Stem LOOK LS2 Alloy (XS-S 90 mm / M 100 mm / L 110 mm / XL 120 mm)
Handlebar LOOK LS2 alloy (XS-S 40 mm / M-L 42 mm / XL 44 mm)
WHEELS
Wheels Shimano RS 171
Tires Hutchinson sector 32 tubeless ready (bike delivered with inner tube)
Transmission & brakes
Crankset FSA Alloy (XS-S 170 mm / M-L-XL 175 mm)
Chainrings FSA Alloy 50x34 t
Chain Shimano HG 601
Bottom bracket Fazua Isis axle
Cassette Shimano 105 r 7000 11x32 t
Shifters Shimano 105
Derailleurs Shimano 105
Rotors Shimano centerlock RT 70 Front: 160 mm Rear: 140 mm
components
Seatpost LOOK LS3 Alloy 27,2x350 mm
Saddle FIZIK Antares r7
Stem LOOK LS2 Alloy (XS-S 90 mm / M 100 mm / L 110 mm / XL 120 mm)
Handlebar LOOK LS2 alloy (XS-S 40 mm / M-L 42 mm / XL 44 mm)
WEIGHT & SIZES
Weight 13,9 kg* (size M / without pedals) *estimate
Sizes XS - S - M - L - XL
ELECTRIC
Motor Fazua Evation 25 km/h (UE) 20 mph (US - CAN)

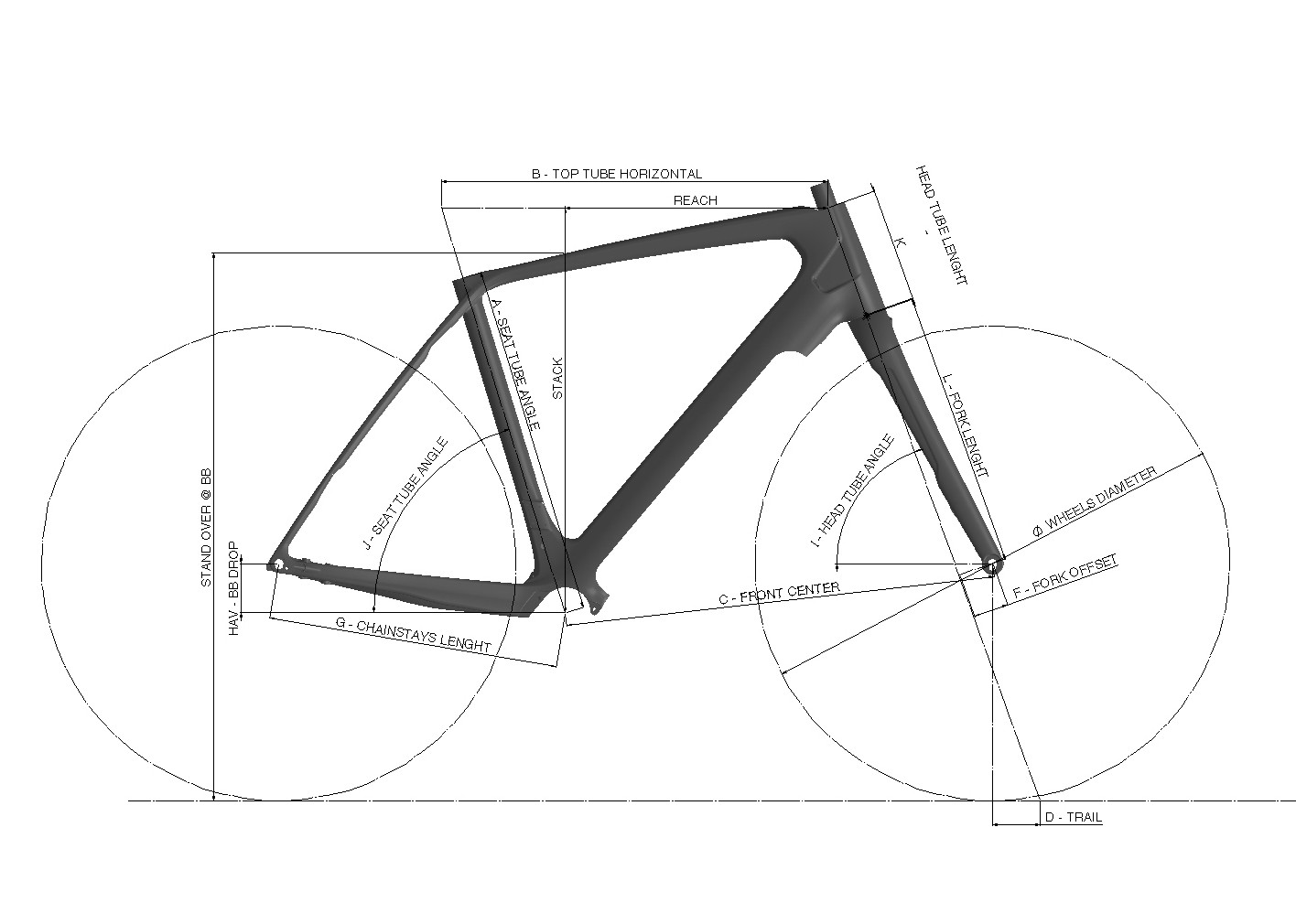

Geometry

Géométrie E-765 OPTIMUM

E-765 OPTIMUM

Wheels diameter : 690 mm / 27.2 inch


XS S M L XL
Stack 530 554 578 602 626
Reach 355 365 375 385 395
I - Head tube (°) 70.3 70.3 70.3 70.3 70.3
J - Seat tube (°) 74 74 73 73 73
A - Seat tube 470 490 510 535 560
B - Top Tube horizontal 507 524 552 569 586.5
C - Front Center 577 595.5 614 632.5 651
D - Trail 70 70 70 70 70
F - Fork offset 50 50 50 50 50
G - Chainstays 415 415 415 415 415
K - Head tube 111.5 137 162.5 188 213.5
L - Fork 395 395 395 395 395
HAV 70 70 70 70 70
Standover 735 758 785 809 833
Stack (mm) 530
Reach (mm) 355
I - Head tube (°) 70.3
J - Seat tube (°) 74
A - Seat tube (mm) 470
B - Top Tube horizontal (mm) 507
C - Front Center (mm) 577
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 111.5
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 735
Stack (mm) 554
Reach (mm) 365
I - Head tube (°) 70.3
J - Seat tube (°) 74
A - Seat tube (mm) 490
B - Top Tube horizontal (mm) 524
C - Front Center (mm) 595.5
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 137
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 758
Stack (mm) 578
Reach (mm) 375
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 510
B - Top Tube horizontal (mm) 552
C - Front Center (mm) 614
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 162.5
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 785
Stack (mm) 602
Reach (mm) 385
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 535
B - Top Tube horizontal (mm) 569
C - Front Center (mm) 632.5
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 188
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 809
Stack (mm) 626
Reach (mm) 395
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 560
B - Top Tube horizontal (mm) 586.5
C - Front Center (mm) 651
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 213.5
L - Fork (mm) 395
HAV (mm) 70
Standover (mm) 833

Your frame has a lifetime warranty

Register for warranty

Files for downloading

Product catalogue

Download

Product information

Download

User's guide

Download

Size guide

Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.

Size bike Cyclist's height
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
