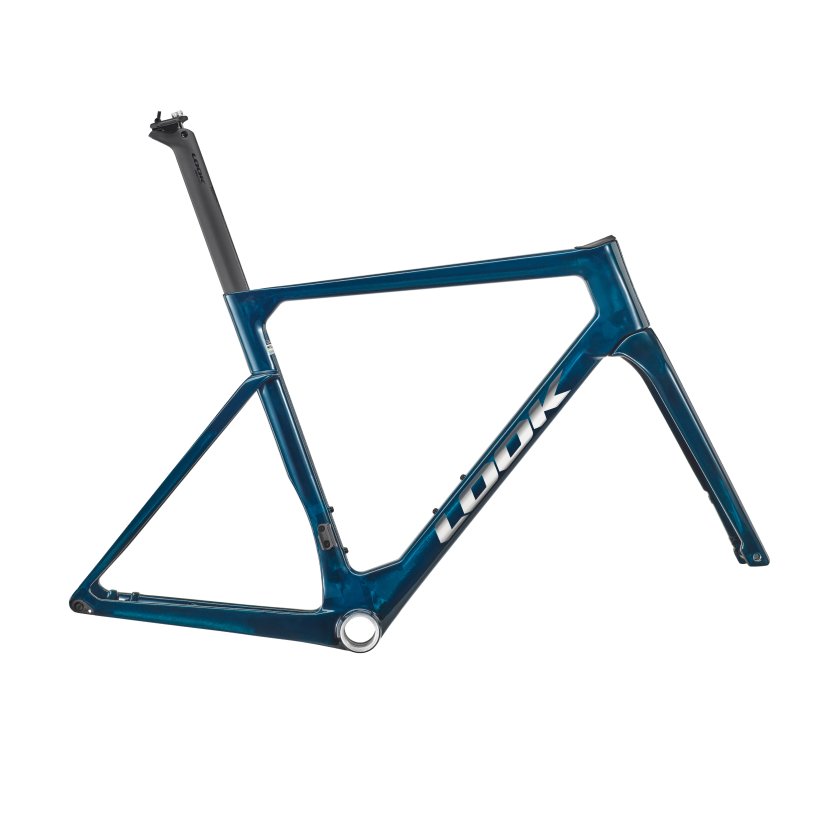

795 Blade^RS Ocean Translucent - Frameset

Race

SKU | 1450

Couleur Ocean Translucent

Bike Color

Tailles

€4,800.00

Only 3 left in stock

Quantity

795 Blade RS Ocean Translucent - Frameset is no longer available online

Customize my bike

If there had to be only one left, it would be this one. The ultimate racing bike, the fastest ever to come out of our workshops. We designed the 795 BLADE RS to win, which it did from its very first outings on the UCI World Tour, in the hands of the riders from the COFIDIS team. Its breathtaking performance comes from meticulous development, in collaboration with the pros, to find the perfect carbon composition and geometry to raise your arms in victory on every race profile. Lightweight, aerodynamic, and stiff, the 795 BLADE RS is a concentration of technology and expertise. It offers you the unique sensations delivered by a racing machine.

Free shipping

On orders over €60

Client service

Visit the FAQ or contact us by email

Secure payment

Visa, Mastercard, AMEX, Paypal, iDeal, Bancontact, Giropay

As sharp... as a blade.

Wind? What wind? The 795 BLADE RS is born to slice through the air. With painstaking wind tunnel testing on the frame and component, the bike is the most worthy ambassador of LOOK Cycle’s aerodynamic expertise, born from years of road and track cycling experience. Each tube section is specifically-shaped to reduce drag and optimize handling precision. Every detail counts when it comes to integration; from the integrated seatpost to the placement of the water bottles, the sharp lines and streamlined design serve the ultimate goal of ultra-high performance.

Powerfully light.

Does choosing mean sacrificing? Not in this case. A bike like the 795 BLADE RS simply means refusing to compromise on either aerodynamics or weight, versatility or responsiveness. For this machine does not compromise, it simply demands meticulous development and a new generation of components to achieve one goal: a fully-built, race-ready bike weighing just 7 kg, with proven dynamic qualities for all types of courses and riders no matter if you are a climber, a rouleur or a sprinter. The 795 BLADE RS is a masterpiece of technology, a featherweight bundle of energy just waiting to be released.

Technical specifications

Made by LOOK

Handlebar	LOOK COMBO AERO CARBON (XXS:38 XS/S:40 M/L:42 XL:44)
Stem	LOOK COMBO AERO CARBON. ANGLE -7°(XXS:80 XS:90 S:100 M/L:110 XL:120)

Wheels

Tires	COMPATIBLE WITH TIRES WITH A MAXIMUM SIZE OF 32 mm (DISC BRAKE VERSION ONLY )

Components

Bottom bracket	T47 (85.5 mm)
Thru axles	X12 ( WITHOUT LEVERS, ADJUSTABLE USING 6 MM ALLEN KEYS) ( 100MM X12 P1.5 THRU CONICAL / 142MM X12 P1.5 THRU CONICAL )

Weight & Sizes

Weight	Frame only (size s): 890g \| frame + fork (size s): 1315g
Sizes	XXS - XS - S - M - L - XL

Geometry

inch

795 Blade RS

Wheel diameter: 682mm

	XXS	XS	S	M	L	XL
Stack	486.2	501.2	525.2	549.2	573.2	597.2
Reach	361.3	371.3	381.3	391.2	401.2	411.2
I - Head tube (°)	70,7	71,8	71,8	73	73	73
J - Seat tube (°)	75	74.5	74.5	74.5	74.5	74.5
A - Seat tube	463	479.6	504.4	529.9	554.8	579.7
B - Horizontal tube	491.6	510.2	526.9	543.5	560.1	576.8
C - Front Center	569.8	569.8	587.6	586.7	603.9	621.6
D - Trail	59.8	59.8	59.8	59.3	59.3	59.3
F - Déport de fourche	50	50	43	43	43	43
G - Bases	410	410	410	410	410	410
K - Head tube	77.9	90.4	115.6	136.7	161.8	189.5
L - Fork	368	368	368	368	368	368
HAV	75.5	73	73	70.5	70.5	68
Standover	720,9	741	765	790	815	841

Stack (mm)	486.2
Reach (mm)	361.3
I - Head tube (°)	70,7
J - Seat tube (°)	75
A - Seat tube (mm)	463
B - Horizontal tube (mm)	491.6
C - Front Center (mm)	569.8
D - Trail (mm)	59.8
F - Déport de fourche (mm)	50
G - Bases (mm)	410
K - Head tube (mm)	77.9
L - Fork (mm)	368
HAV (mm)	75.5
Standover (mm)	720,9

Stack (mm)	501.2
Reach (mm)	371.3
I - Head tube (°)	71,8
J - Seat tube (°)	74.5
A - Seat tube (mm)	479.6
B - Horizontal tube (mm)	510.2
C - Front Center (mm)	569.8
D - Trail (mm)	59.8
F - Déport de fourche (mm)	50
G - Bases (mm)	410
K - Head tube (mm)	90.4
L - Fork (mm)	368
HAV (mm)	73
Standover (mm)	741

Stack (mm)	525.2
Reach (mm)	381.3
I - Head tube (°)	71,8
J - Seat tube (°)	74.5
A - Seat tube (mm)	504.4
B - Horizontal tube (mm)	526.9
C - Front Center (mm)	587.6
D - Trail (mm)	59.8
F - Déport de fourche (mm)	43
G - Bases (mm)	410
K - Head tube (mm)	115.6
L - Fork (mm)	368
HAV (mm)	73
Standover (mm)	765

Stack (mm)	549.2
Reach (mm)	391.2
I - Head tube (°)	73
J - Seat tube (°)	74.5
A - Seat tube (mm)	529.9
B - Horizontal tube (mm)	543.5
C - Front Center (mm)	586.7
D - Trail (mm)	59.3
F - Déport de fourche (mm)	43
G - Bases (mm)	410
K - Head tube (mm)	136.7
L - Fork (mm)	368
HAV (mm)	70.5
Standover (mm)	790

Stack (mm)	573.2
Reach (mm)	401.2
I - Head tube (°)	73
J - Seat tube (°)	74.5
A - Seat tube (mm)	554.8
B - Horizontal tube (mm)	560.1
C - Front Center (mm)	603.9
D - Trail (mm)	59.3
F - Déport de fourche (mm)	43
G - Bases (mm)	410
K - Head tube (mm)	161.8
L - Fork (mm)	368
HAV (mm)	70.5
Standover (mm)	815

Stack (mm)	597.2
Reach (mm)	411.2
I - Head tube (°)	73
J - Seat tube (°)	74.5
A - Seat tube (mm)	579.7
B - Horizontal tube (mm)	576.8
C - Front Center (mm)	621.6
D - Trail (mm)	59.3
F - Déport de fourche (mm)	43
G - Bases (mm)	410
K - Head tube (mm)	189.5
L - Fork (mm)	368
HAV (mm)	68
Standover (mm)	841
