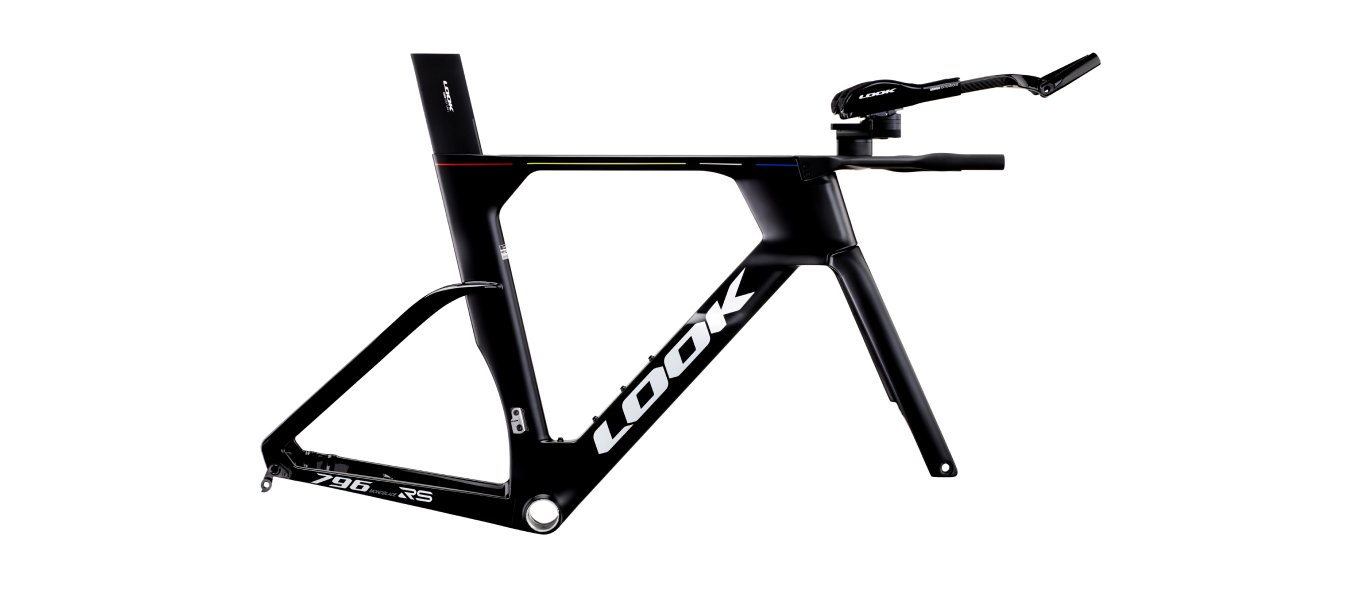

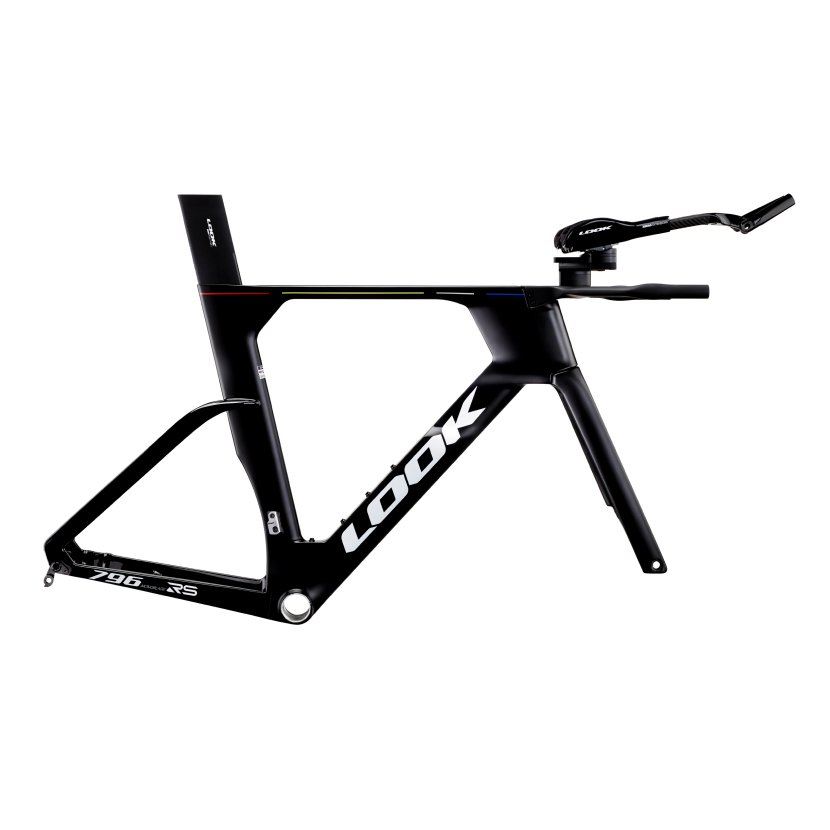

796 MONOBLADE RS - FRAMESET
SKU | 26328
We have achieved aerodynamic excellence through cutting-edge digital modeling and
rigorous wind tunnel and on-road tests, resulting in a lightweight, rigid design that seamlessly
combines our track expertise, carbon mastery and unyielding commitment to performance. The
outcome is an incredible racing machine, meticulously optimized from frame to cockpit, that slices
through the air ; faster and faster.
- Proteam Black Glossy
Proteam Black Glossy
US$6,990.00
Buy in shop
Why you will love it ?
- Exceptional aerodynamics born from our close collaboration with World Tour Team Cofidis, to cut through the air and conquer the clock.
- Top-of-its-class dynamic performance, thanks to an extraordinary weight-to-stiffness ratio.
- Ultimate ergonomics with easily-adjustable components, allowing you to find the perfect position.
- LOOK Cycle's expertise and mastery of carbon fiber technologies, optimizing every aspect of the design.
Technical Specification
| Frame | Ultra High Modulus carbon fiber. Internal cable routing |
|---|---|
| Seatpost | LOOK AEROPOST TUBE 2 WITH REVERSIBLE HEAD. SLINDING SEATPOST INTEGRATED CLAMP |
| Stem | Combo AEROFLAT BAR 2 Carbon. |
| Handlebar | Combo AEROFLAT BAR 2 – 380mm or 400mm Width. |
| Tires | Compatible with tires with a maximum size of 32mm. |
|---|---|
| Thru axles |
Front thru-axle : X12 type 100 mm M12 P1,5, full lenght : 115 mm. Rear thru-axle: X12 type 142 mm M12 P1,5, full lenght : 160 mm. |
| Brakes | Disc mount only. Flat mount standard. |
|---|---|
| Bottom bracket | T47 85,5 mm |
| Sizes | XS | S | M | L |
|---|
Geometry
796 Monoblade RS
Wheel diameter: 682mm
| XS | S | M | L | |
|---|---|---|---|---|
| Stack | 502 | 527 | 552 | 577 |
| Reach | 393 | 405 | 417 | 429 |
| I - Head tube (°) | 72.5 | 72.5 | 72.5 | 72.5 |
| J - Seat tube (°) | 77 | 77 | 77 | 77 |
| A - Seat tube | 512.5 | 541 | 567 | 592 |
| B - Top Tube horizontal | 508.9 | 526.7 | 544.4 | 562.2 |
| C - Front Center | 578.6 | 598.4 | 618.1 | 637.8 |
| D - Trail | 62.6 | 62.6 | 62.6 | 62.6 |
| F - Fork offset | 44 | 44 | 44 | 44 |
| G - Chainstays | 410 | 410 | 410 | 410 |
| K - Head tube | 96.6 | 124.8 | 151 | 177.2 |
| L - Fork | 363 | 363 | 363 | 363 |
| HAV | 75 | 75 | 75 | 75 |
| Standover | 772 | 797 | 822 | 847 |
| Stack (mm) | 502 |
|---|---|
| Reach (mm) | 393 |
| I - Head tube (°) | 72.5 |
| J - Seat tube (°) | 77 |
| A - Seat tube (mm) | 512.5 |
| B - Top Tube horizontal (mm) | 508.9 |
| C - Front Center (mm) | 578.6 |
| D - Trail (mm) | 62.6 |
| F - Fork offset (mm) | 44 |
| G - Chainstays (mm) | 410 |
| K - Head tube (mm) | 96.6 |
| L - Fork (mm) | 363 |
| HAV (mm) | 75 |
| Standover (mm) | 772 |
| Stack (mm) | 527 |
|---|---|
| Reach (mm) | 405 |
| I - Head tube (°) | 72.5 |
| J - Seat tube (°) | 77 |
| A - Seat tube (mm) | 541 |
| B - Top Tube horizontal (mm) | 526.7 |
| C - Front Center (mm) | 598.4 |
| D - Trail (mm) | 62.6 |
| F - Fork offset (mm) | 44 |
| G - Chainstays (mm) | 410 |
| K - Head tube (mm) | 124.8 |
| L - Fork (mm) | 363 |
| HAV (mm) | 75 |
| Standover (mm) | 797 |
| Stack (mm) | 552 |
|---|---|
| Reach (mm) | 417 |
| I - Head tube (°) | 72.5 |
| J - Seat tube (°) | 77 |
| A - Seat tube (mm) | 567 |
| B - Top Tube horizontal (mm) | 544.4 |
| C - Front Center (mm) | 618.1 |
| D - Trail (mm) | 62.6 |
| F - Fork offset (mm) | 44 |
| G - Chainstays (mm) | 410 |
| K - Head tube (mm) | 151 |
| L - Fork (mm) | 363 |
| HAV (mm) | 75 |
| Standover (mm) | 822 |
| Stack (mm) | 577 |
|---|---|
| Reach (mm) | 429 |
| I - Head tube (°) | 72.5 |
| J - Seat tube (°) | 77 |
| A - Seat tube (mm) | 592 |
| B - Top Tube horizontal (mm) | 562.2 |
| C - Front Center (mm) | 637.8 |
| D - Trail (mm) | 62.6 |
| F - Fork offset (mm) | 44 |
| G - Chainstays (mm) | 410 |
| K - Head tube (mm) | 177.2 |
| L - Fork (mm) | 363 |
| HAV (mm) | 75 |
| Standover (mm) | 847 |
You will like also
YOU'LL FIND WHAT YOU'RE LOOKING FOR
Our products are available in several versions to meet the needs of passionate customers like you. Whether it's for a choice of colors or technical specifications, navigate freely to see all the options available to you.
YOUR FRAME HAS A LIFETIME WARRANTY
Register for warrantyGuide des tailles
Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.
| Bike Sizes | Rider Sizes | |
|---|---|---|
| XS | < 166 | |
| S | 164 - 173 | |
| M | 171 - 180 | |
| L | 178 - 187 |
| XS | < 166 |
|---|---|
| S | 164 - 173 |
| M | 171 - 180 |
| L | 178 - 187 |
