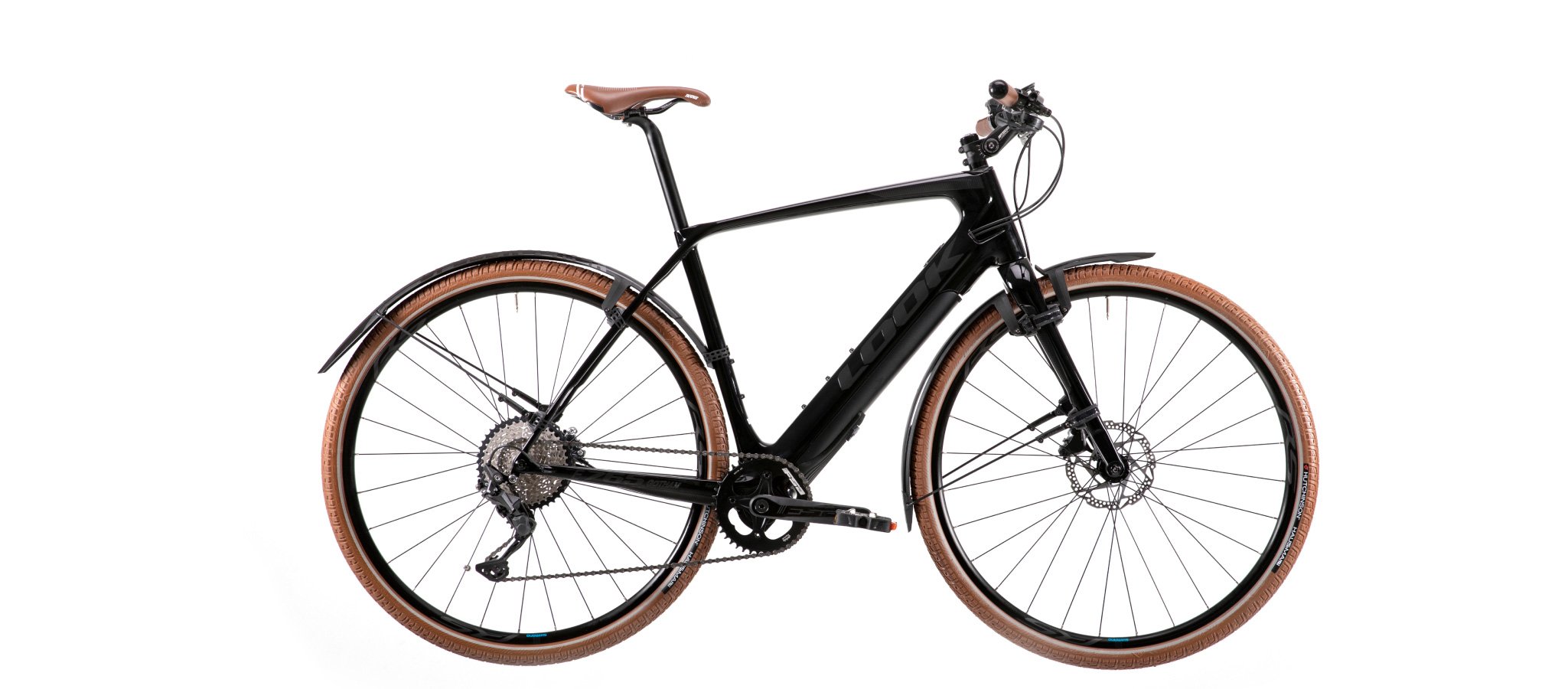

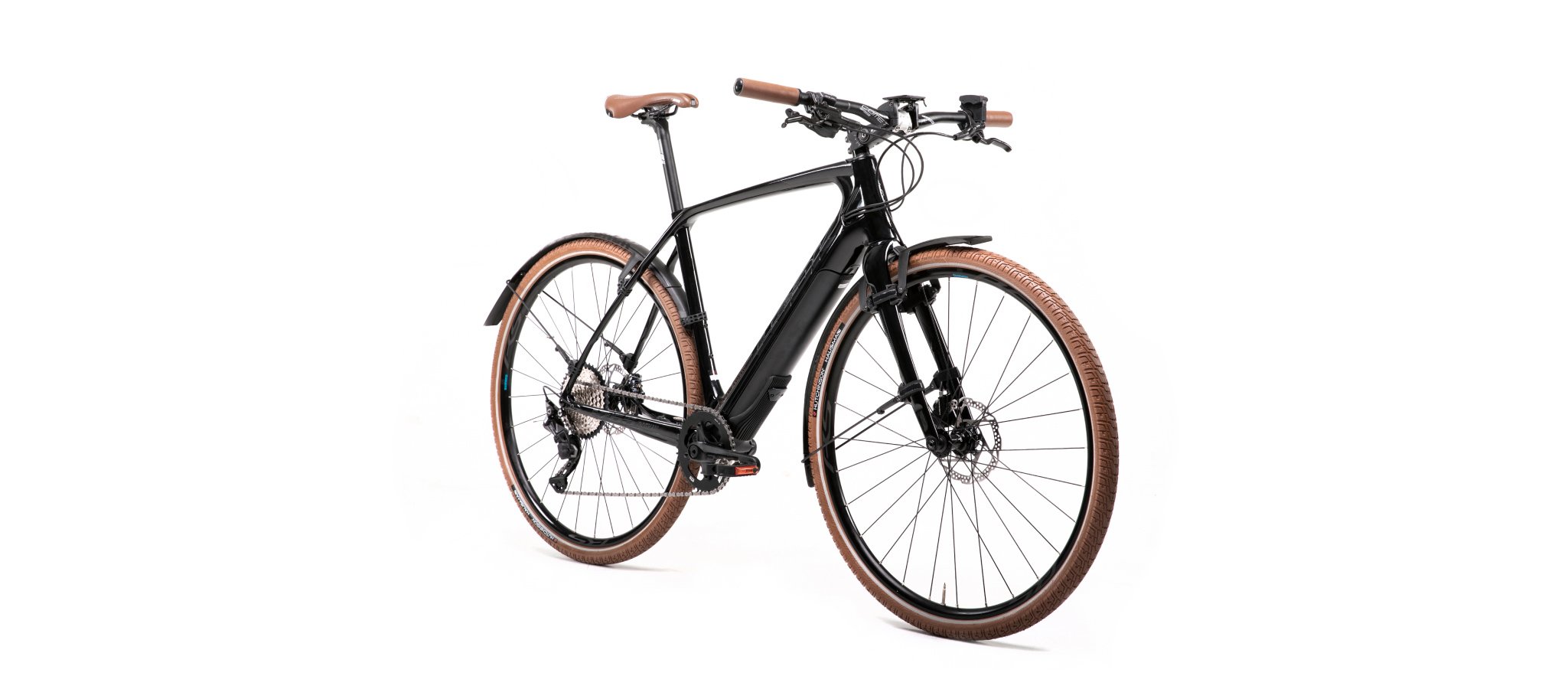

E-765 GOTHAM

E-City

SKU | 25647

US$5,800.00

The E-765 GOTHAM sets a new standard in the world of power-assisted bicycles. With a full-carbon frame and central FAZUA EVATION motor, this Made By LOOK e-bike is lightness personified. The 250w battery is removable, giving the rider the option to switch between the comfort of an electric bike and the performance of a classic bike. Carefully-selected components such as mudguards, LOOK GEO TREKKING VISION pedals, adjustable stem and integrated phone holder make this a highly comfortable and versatile machine. A new bicycle designed for daily commutes in the city, yet perfectly suited to leisurely weekend adventures.

Why you'll love it?

LIGHTNESS AND COMFORT WITH EACH PEDAL STROKE

Full-carbon fork and frame: the ideal material for lightness and reliable sturdiness
A motor whose power is as impressive as its weight: less than 5kg, more than 50km autonomy to ride through the city

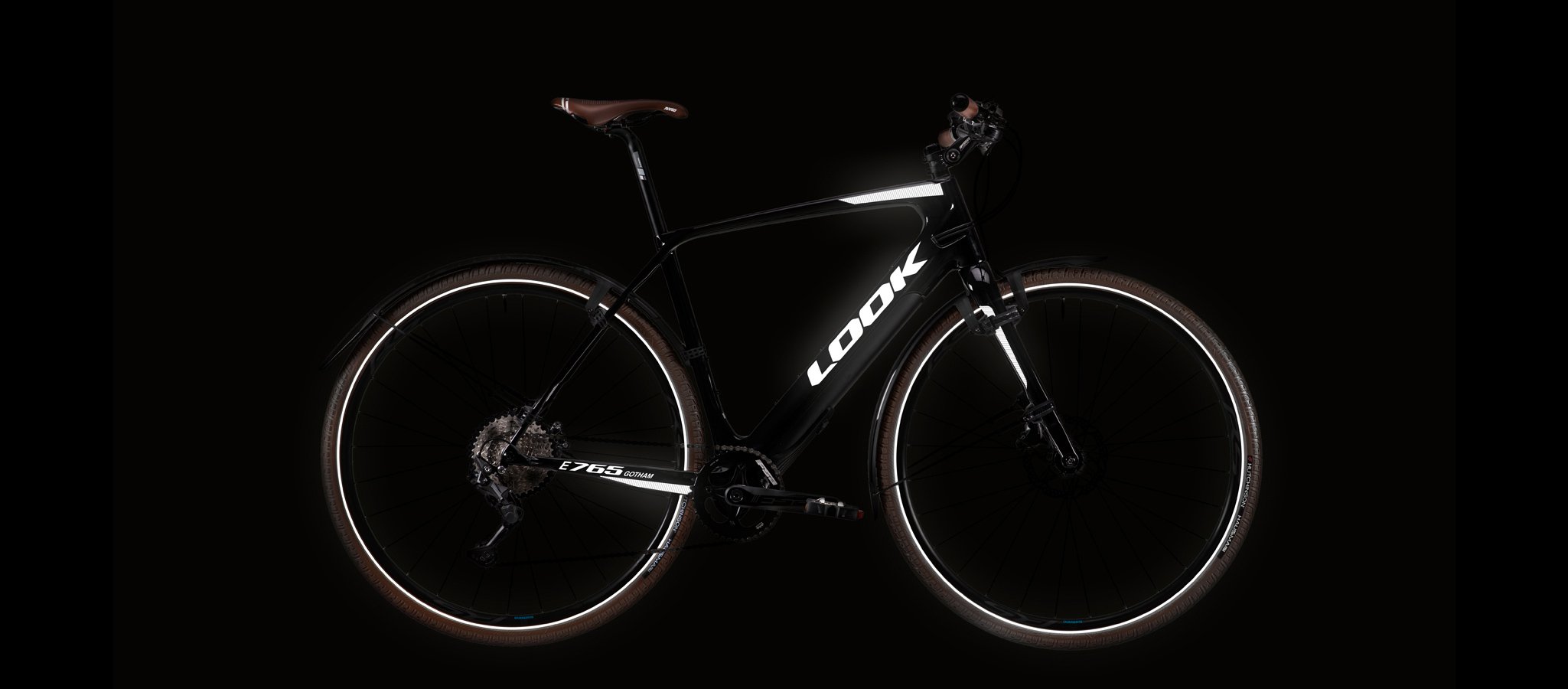

Ultimate comfort in all situations; reflective components and lights for maximum safety; wide-section tires and adjustable stem for smooth steering

Technical specifications

Made by LOOK

Seatpost	LOOK LS3 ALLOY SEATPOST 27.2 mm 350 mm
Pedals	LOOK GEO TREKKING VISION

Wheels

Wheels	SHIMANO RS 171
Tires	HUTCHINSON HAUSSMANN 700 x 40 BROWN

Transmission & brakes

Crankset	FSA ALLOY 50 x 34 (XS-S 170 / M-L-XL 175)
Chain	SHIMANO 10 S HG54
Bottom bracket	FAZUA ISIS AXLE

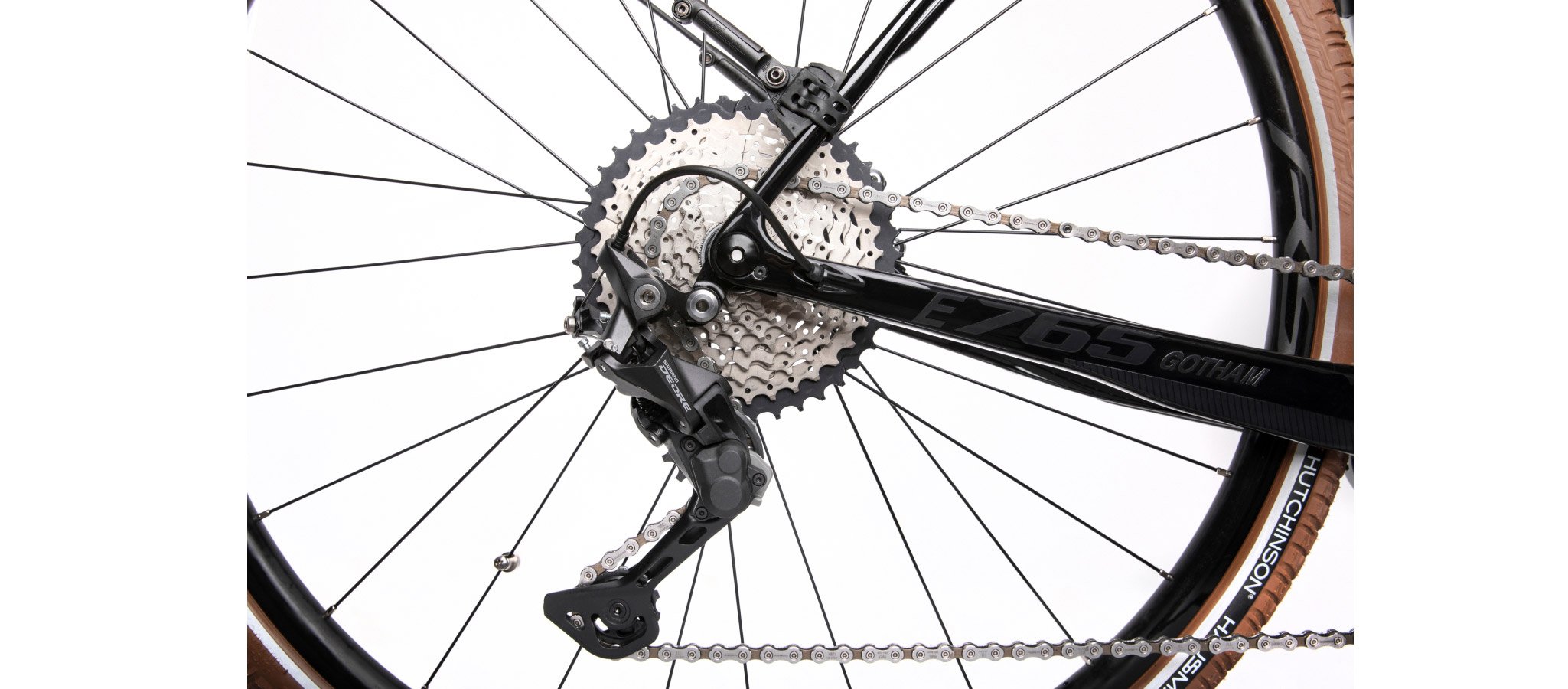

Cassette	SHIMANO DEORE 10 SPEED 11X42
Shifters	SHIMANO DEORE 10 S OPTICAL GEAR DISPLAY
Derailleurs	SHIMANO DEORE SGS

Components

Handlebar	FSA COMET HB RISER 15 mm 740 mm
Stem	FSA VARIUS STEM -20 / + 40° (XS, S, M, L: 100 mm)
Seatpost	LOOK LS3 ALLOY SEATPOST 27.2 mm 350 mm
Saddle	SELLE ITALIA NOVUS BOOST BROWN
Pedals	LOOK GEO TREKKING VISION

Weight & sizes

Weight	15.8 kgs (Size M)
Sizes	XS - S - M - L

Electric

Motor	FAZUA EVATION 20 mph (US –CAN)
Maximum power	400 w
Battery type	250 w

Accessories

Mudguards	SKS SPEEDROCKER REMOOVABLE
Smartphone holder	SKS COMPIT + UNISERSAL COVER

Your frame has a lifetime warranty

Files for downloading

Product catalogue

Download

Product information

Download

Size guide

Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.

inch

Size bike	Cyclist's height
XS	< xxx
S	xxx - xxx
M	xxx - xxx
L	xxx - xxx
XL	> xxx

Cyclist's height

XS	< xxx
S	xxx - xxx
M	xxx - xxx
L	xxx - xxx
XL	> xxx
