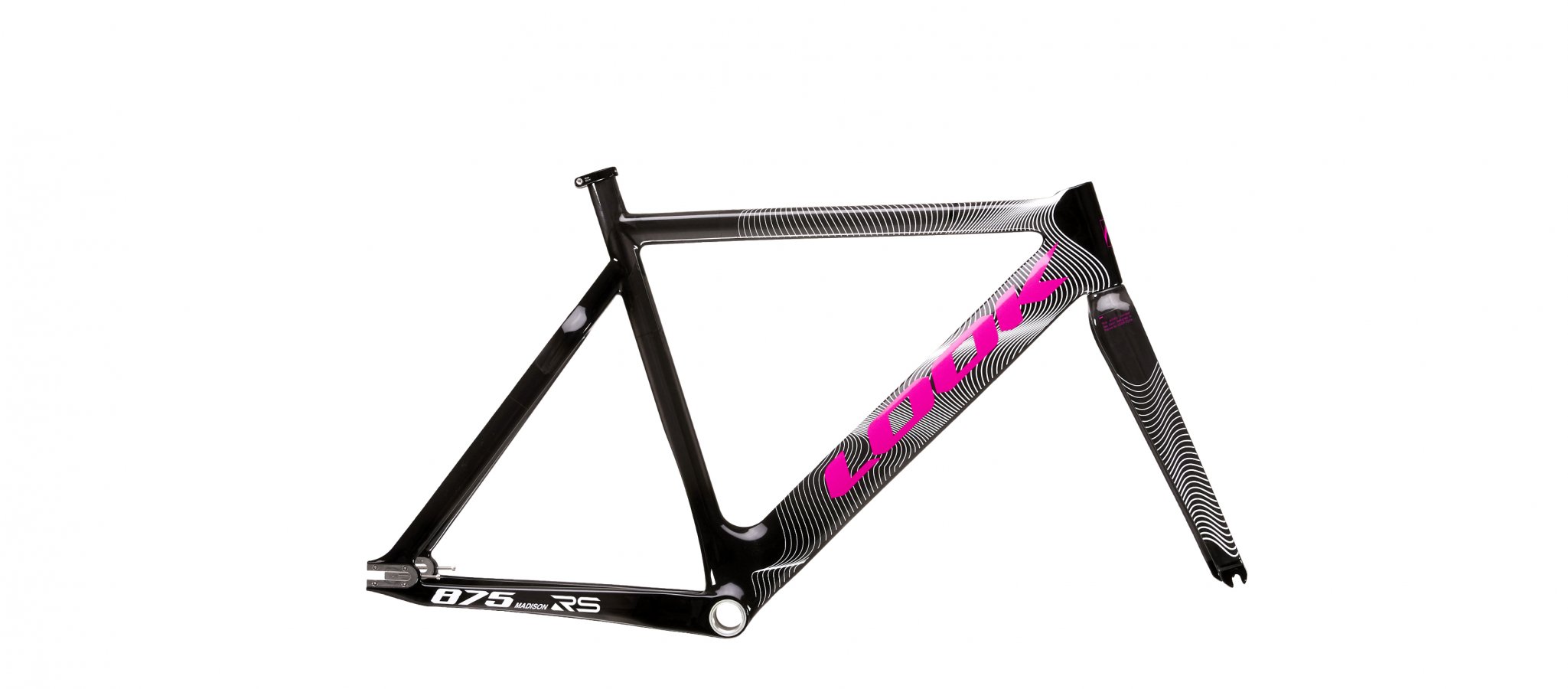

875 MADISON RS TEAM LOOK CRIT LIMITED EDITION - FRAMESET

SKU | 23383

The 875 MADISON RS is designed to be as efficient on the road as on the track, and our LOOK CRIT TEAM will not tell you otherwise. Thanks to the brake-ready fork and rear bridge, you can safely cruise the city streets on your fixed gear or single speed machine. A twist of an Allen key is enough to remove the brakes and hit the boards of the velodrome. Representing the versatility and performance of the LOOK brand, this limited edition invites does nothing more and nothing less than invite you to imitate our CRIT team...

  • Team LOOK Crit

Team LOOK Crit

$2,100.00

Buy in shop

Why you'll love it?

A unique design for unique riders

  • A limited edition to ride without limits: both frame and fork are built from high modulus UD carbon fibers for impressive stiffness and resistance
  • A history lesson all on its own, the famous MADISON frame is still adding chapter to its story with the LOOK CRIT TEAM
  • Psychedelic paintwork to get your opponents' heads spinning

Technical specifications

Made by LOOK

Frame UD CARBON-FINISH HIGH MODULUS CARBON FRAME INTEGRATED HEADSET COMPATIBLE SEAT POST DIAMETER 31.6 MM

Transmission & brakes

Bottom bracket BSA 68 MM

Weight & Sizes

Sizes XS - S - M - L - XL

Geometry

Géométrie 765 Madison RS

875 MADISON RS

Wheels diameter : 676 mm / 26,6 inch


XS S M L XL
Stack 480 495 510 525 540
Reach 360 385 410 435 460
I - Head tube (°) 73 73 73 73 73
J - Seat tube (°) 73.5 73.5 73.5 73.5 73.5
A - Seat tube 500 525 550 570 590
B - Top Tube horizontal 502 531.5 561 590.5 620
C - Front Center 539 568 598 627 657
D - Trail 59 59 59 59 59
F - Fork offset 43 43 43 43 43
G - Chainstays 380 380 380 380 380
K - Head tube 95 110.5 126 142 157.5
L - Fork 368 368 368 368 368
HAV 50 50 50 50 50
Standover 745 760 774 790 805
Stack (mm) 480
Reach (mm) 360
I - Head tube (°) 73
J - Seat tube (°) 73.5
A - Seat tube (mm) 500
B - Top Tube horizontal (mm) 502
C - Front Center (mm) 539
D - Trail (mm) 59
F - Fork offset (mm) 43
G - Chainstays (mm) 380
K - Head tube (mm) 95
L - Fork (mm) 368
HAV (mm) 50
Standover (mm) 745
Stack (mm) 495
Reach (mm) 385
I - Head tube (°) 73
J - Seat tube (°) 73.5
A - Seat tube (mm) 525
B - Top Tube horizontal (mm) 531.5
C - Front Center (mm) 568
D - Trail (mm) 59
F - Fork offset (mm) 43
G - Chainstays (mm) 380
K - Head tube (mm) 110.5
L - Fork (mm) 368
HAV (mm) 50
Standover (mm) 760
Stack (mm) 510
Reach (mm) 410
I - Head tube (°) 73
J - Seat tube (°) 73.5
A - Seat tube (mm) 550
B - Top Tube horizontal (mm) 561
C - Front Center (mm) 598
D - Trail (mm) 59
F - Fork offset (mm) 43
G - Chainstays (mm) 380
K - Head tube (mm) 126
L - Fork (mm) 368
HAV (mm) 50
Standover (mm) 774
Stack (mm) 525
Reach (mm) 435
I - Head tube (°) 73
J - Seat tube (°) 73.5
A - Seat tube (mm) 570
B - Top Tube horizontal (mm) 590.5
C - Front Center (mm) 627
D - Trail (mm) 59
F - Fork offset (mm) 43
G - Chainstays (mm) 380
K - Head tube (mm) 142
L - Fork (mm) 368
HAV (mm) 50
Standover (mm) 790
Stack (mm) 540
Reach (mm) 460
I - Head tube (°) 73
J - Seat tube (°) 73.5
A - Seat tube (mm) 590
B - Top Tube horizontal (mm) 620
C - Front Center (mm) 657
D - Trail (mm) 59
F - Fork offset (mm) 43
G - Chainstays (mm) 380
K - Head tube (mm) 157.5
L - Fork (mm) 368
HAV (mm) 50
Standover (mm) 805

Your frame has a lifetime warranty

Register for warranty

Files for downloading

Product information

Download

User's guide

Download

Size guide

Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.

Size bike Cyclist's height
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
