765-optimum-plus-interference-sram-rival-axs-a1

765 Optimum+ Interference Red Mat Glossy

Bikes

SKU | 25253

US$5,200.00

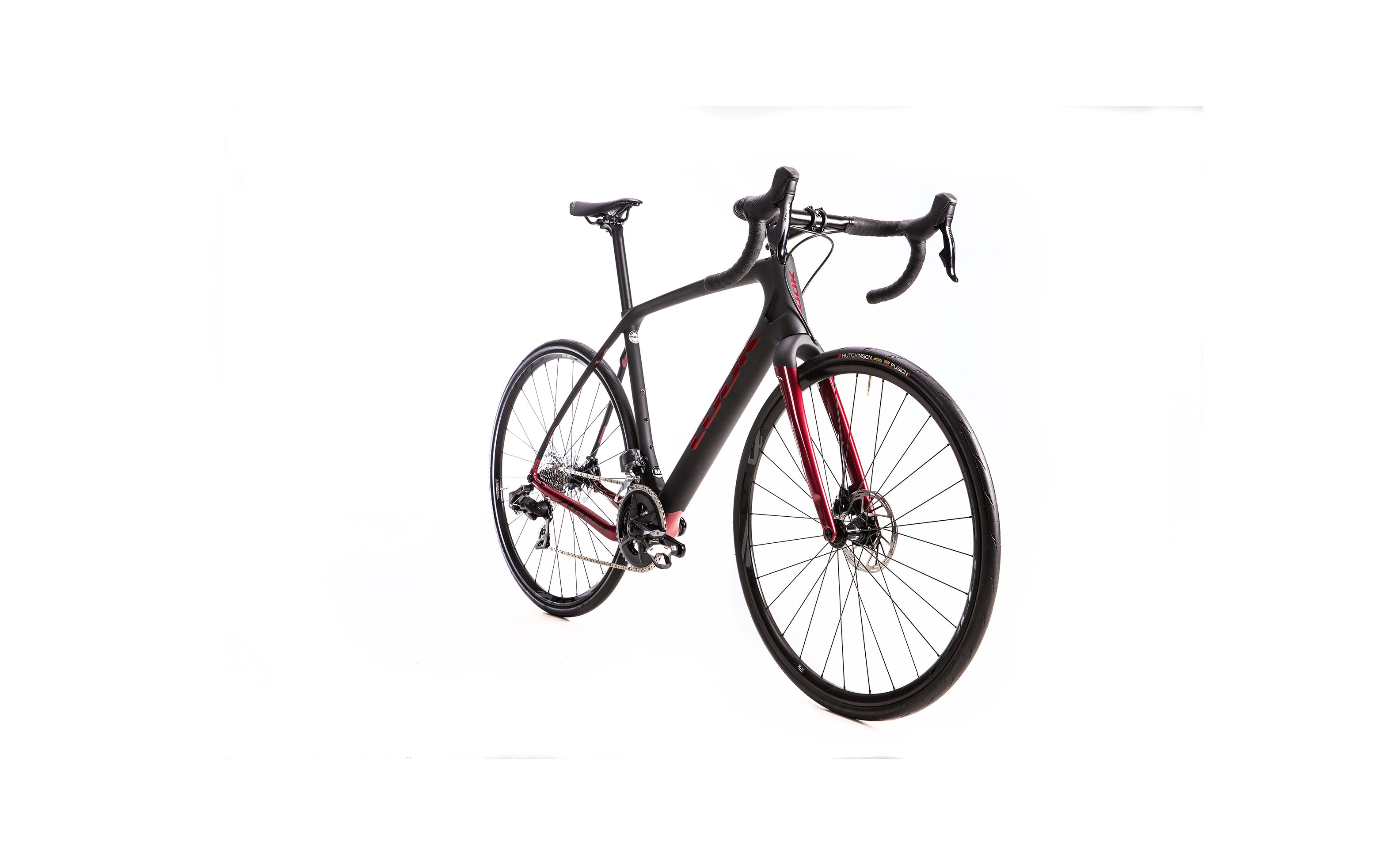

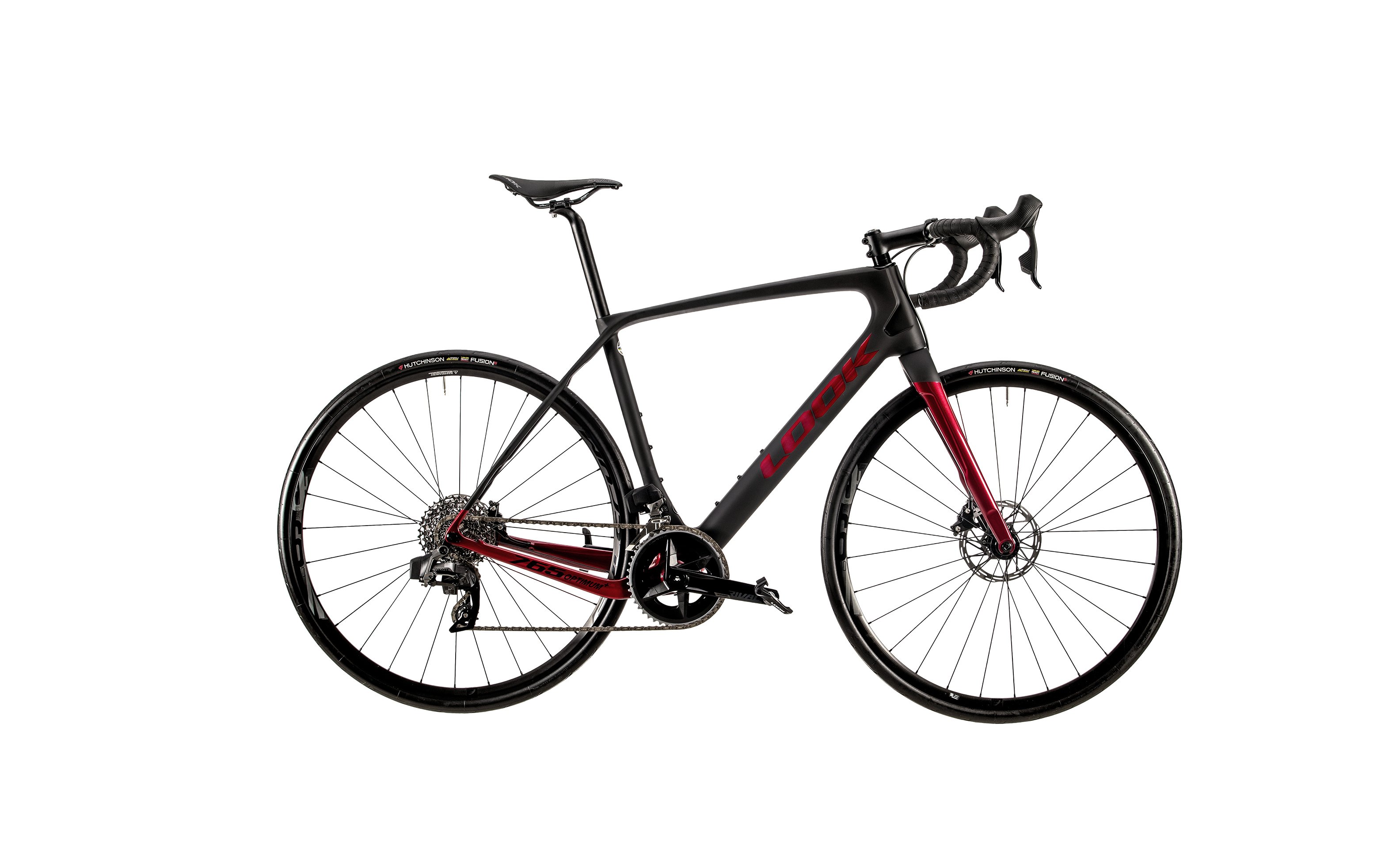

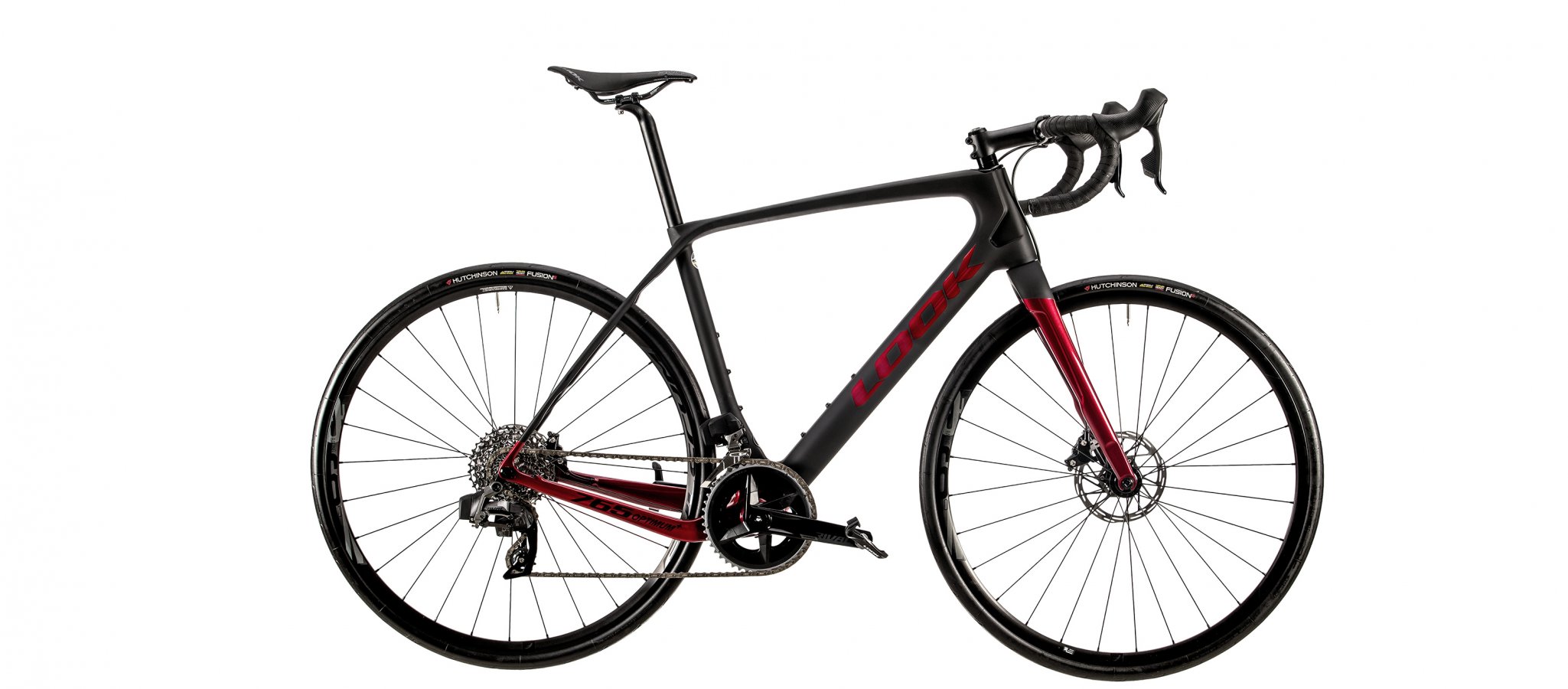

Combine our endurance bike with the latest SRAM Rival AXS groupset and the result is the 765 Optimum + Interference. The full carbon frame features a geometry designed for long distance riding, with a shorter reach and higher stack for ultimate comfort as you build up the miles. The revolutionary 2x12 speed drivetrain is combined with a 46x33 crankset and 10x36 cassette to give you the options and confidence to tackle any climb. Finally, the dedicated color scheme blends deep red with subtle black highlights that catch the eye with every pedal stroke.

Why you'll love it ?

When endurance meets innovation:

A geometry dedicated to comfort and endurance thanks to a shorter and higher frame
The new SRAM Rival AXS 2x12 wireless groupset, offering a very wide range of use
A color that is both sober and powerful, expressing all the strength of character of this bike

Find out more

Technical specifications

Made by LOOK

Handlebar	LOOK LS2 ALLOY (XS – S 40 / M-L 42 / XL 44)
Stem	LOOK LS2 ALLOY (XS 90 / S 100 / M-L 110 / XL 120)
Seatpost	LOOK LS3 ALLOY 27.2 mm 350 mm
Saddle	LOOK by S MARCO SHORT FIT DYNAMIC open fit

Wheels

Wheels	FULCRUM RACING 900 DB 2WF C19 BLACK DECALS
Tires	HUTCHINSON FUSION 5 TUBELESS READY 700 X 30
Thru axles	SPEED RELEASE READY 142X12 R / 100 X 12 F

Transmission & brakes

Groupset	SRAM RIVAL ETAP AXS 12s
Derailleurs	SRAM RIVAL ETAP AXS WIRELESS
Shifters	SRAM RIVAL ETAP AXS WIRELESS HYDRAULIC
Crankset	SRAM RIVAL DUB 46 x 33 (XS-S 170/M-L 172,5 /XL 175)
Chain	SRAM RIVAL 12
Cassette	SRAM RIVAL 12 SPEED 10 x 36 XG 1250
Bottom bracket	BB 386 / Token Ninja SRAM DUB
Rotors	SRAM CENTERLOCK F: 160 mm R : 140 mm

Components

Handlebar	LOOK LS2 ALLOY (XS – S 40 / M-L 42 / XL 44)
Stem	LOOK LS2 ALLOY (XS 90 / S 100 / M-L 110 / XL 120)
Seatpost	LOOK LS3 ALLOY 27.2 mm 350 mm
Saddle	LOOK by S MARCO SHORT FIT DYNAMIC open fit

weight & sizes

Sizes	XS - S - M - L - XL

Geometry

inch

765 Optimum Plus

Wheels diameter: 686 mm / 27 inch

	XS	S	M	L	XL
Stack	530	554	578	602	626
Reach	355	365	375	385	395
I - Head tube (°)	70.3	70.3	70.3	70.3	70	.3
J - Seat tube (°)	74	74	73	73	73
A - Seat tube	470	490	510	535	560
B - Top Tube horizontal	507	524	552	569	586.5
C - Front Center	577	595.5	614	632.5	651
D - Trail	70.5	70.5	70.5	70.5	70.5
F - Fork offset	50	50	50	50	50
G - Chainstays	420	420	420	420	420
K - Head tube	111.5	137	162.5	188	213.5
L - Fork	395	395	395	395	395
HAV	70	70	70	70	70
Standover	740	764	788	812	836

Stack (mm)	530
Reach (mm)	355
I - Head tube (°)	70.3
J - Seat tube (°)	74
A - Seat tube (mm)	470
B - Top Tube horizontal (mm)	507
C - Front Center (mm)	577
D - Trail (mm)	70.5
F - Fork offset (mm)	50
G - Chainstays (mm)	420
K - Head tube (mm)	111.5
L - Fork (mm)	395
HAV (mm)	70
Standover (mm)	740

Stack (mm)	554
Reach (mm)	365
I - Head tube (°)	70.3
J - Seat tube (°)	74
A - Seat tube (mm)	490
B - Top Tube horizontal (mm)	524
C - Front Center (mm)	595.5
D - Trail (mm)	70.5
F - Fork offset (mm)	50
G - Chainstays (mm)	420
K - Head tube (mm)	137
L - Fork (mm)	395
HAV (mm)	70
Standover (mm)	764

Stack (mm)	578
Reach (mm)	375
I - Head tube (°)	70.3
J - Seat tube (°)	73
A - Seat tube (mm)	510
B - Top Tube horizontal (mm)	552
C - Front Center (mm)	614
D - Trail (mm)	70.5
F - Fork offset (mm)	50
G - Chainstays (mm)	420
K - Head tube (mm)	162.5
L - Fork (mm)	395
HAV (mm)	70
Standover (mm)	788

Stack (mm)	602
Reach (mm)	385
I - Head tube (°)	70.3
J - Seat tube (°)	73
A - Seat tube (mm)	535
B - Top Tube horizontal (mm)	569
C - Front Center (mm)	632.5
D - Trail (mm)	70.5
F - Fork offset (mm)	50
G - Chainstays (mm)	420
K - Head tube (mm)	188
L - Fork (mm)	395
HAV (mm)	70
Standover (mm)	812

Stack (mm)	626
Reach (mm)	395
I - Head tube (°)	70
J - Seat tube (°)	73
A - Seat tube (mm)	560
B - Top Tube horizontal (mm)	586.5
C - Front Center (mm)	651
D - Trail (mm)	70.5
F - Fork offset (mm)	50
G - Chainstays (mm)	420
K - Head tube (mm)	213.5
L - Fork (mm)	395
HAV (mm)	70
Standover (mm)	836
