785 Huez Grey Blue Satin

SKU | 26722

US$5,500.00

Buy in shop


The new 785 Huez Shimano 105 Di2 Grey Blue is designed for climbers. Light and responsive, it will propel you to the summit while providing the required compliance to explore mountain passes and spend long days in the saddle.
Afficher plus Afficher moins
The new 785 Huez 105 is designed for climbers. Light and responsive, it will propel you to the summit while providing the required compliance to explore mountain passes and spend long days in the saddle. Equipped with a Shimano 105 Di2 groupset and LOOK R38 carbon wheels, it offers ideal performance for all of your challenges and provides a unique sensation as soon as the road goes up.

Technical specifications

Made by LOOK
Handlebar LOOK LS3 ALLOY AERO (XS:38 /S:40 M/L:42 XL:44)
Stem LOOK LS3 ALLOY (XS 90 / S 100 / M L 110 / XL 120)
Seatpost LOOK LS2 CARBON 27.2 mm 350 mm
Saddle LOOK SHORT FIT DYNAMIC open fit
Wheels
Wheels LOOK R 38 D CARBON SHIM BODY
Tires HUTCHINSON FUSION 5 PERFORMANCE TUBELESS READY 700x25
Thru axles X12 : M12 x 1.5 142x12 R / 100x12 F
Transmission & brakes

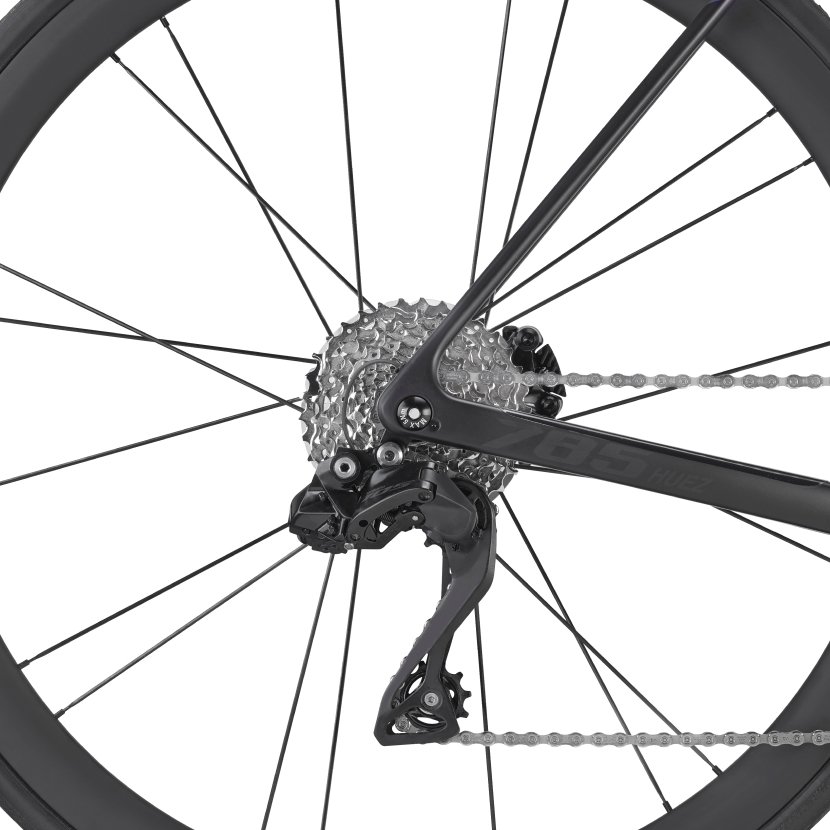

Derailleurs HIMANO 105 DI2 R7150
Shifters SHIMANO 105 DI2 R7170
Crankset SHIMANO 105 R7100 50 x 34
Cassette SHIMANO 105 R7000 11 x 34
Bottom bracket T47 TOKEN T47V24 PREMIUM BEARINGS
Rotors SHIMANO RT 70 F: 160 mm R : 140 mm
Chain SHIMANO M7100 12 SPEED
Weight & sizes
Sizes XS - S - M - L - XL

Geometry

Geometry

785 Huez

Wheels diameter : 686 mm / 27 inch


XS S M L XL
Stack 519.2 543.3 567.3 591.3 615.3
Reach 365.3 375.3 385.6 395.5 405.6
I - Head tube (°) 71.5 71.5 73 73 73
J - Seat tube (°) 74.5 74.5 74.5 74.5 74.5
A - Seat tube 480 504 530 554 579
B - Top tube 509.3 526 543 559.6 576.3
C - Front Center 569.8 587.6 586.7 603.9 621.7
D - Trail 59.8 59.8 59.3 59.3 59.3
F - Fork offset 50 50 43 43 43
G - Chainstays 410 410 410 410 410
K - Head tube 94.4 119.6 140.7 165.8 193.5
L - Fork 368 368 368 368 368
HAV 73 73 70.5 70.5 68
Standover 709.9 733.7 761.7 785.5 812.5
Stack (mm) 519.2
Reach (mm) 365.3
I - Head tube (°) 71.5
J - Seat tube (°) 74.5
A - Seat tube (mm) 480
B - Top tube (mm) 509.3
C - Front Center (mm) 569.8
D - Trail (mm) 59.8
F - Fork offset (mm) 50
G - Chainstays (mm) 410
K - Head tube (mm) 94.4
L - Fork (mm) 368
HAV (mm) 73
Standover (mm) 709.9
Stack (mm) 543.3
Reach (mm) 375.3
I - Head tube (°) 71.5
J - Seat tube (°) 74.5
A - Seat tube (mm) 504
B - Top tube (mm) 526
C - Front Center (mm) 587.6
D - Trail (mm) 59.8
F - Fork offset (mm) 50
G - Chainstays (mm) 410
K - Head tube (mm) 119.6
L - Fork (mm) 368
HAV (mm) 73
Standover (mm) 733.7
Stack (mm) 567.3
Reach (mm) 385.6
I - Head tube (°) 73
J - Seat tube (°) 74.5
A - Seat tube (mm) 530
B - Top tube (mm) 543
C - Front Center (mm) 586.7
D - Trail (mm) 59.3
F - Fork offset (mm) 43
G - Chainstays (mm) 410
K - Head tube (mm) 140.7
L - Fork (mm) 368
HAV (mm) 70.5
Standover (mm) 761.7
Stack (mm) 591.3
Reach (mm) 395.5
I - Head tube (°) 73
J - Seat tube (°) 74.5
A - Seat tube (mm) 554
B - Top tube (mm) 559.6
C - Front Center (mm) 603.9
D - Trail (mm) 59.3
F - Fork offset (mm) 43
G - Chainstays (mm) 410
K - Head tube (mm) 165.8
L - Fork (mm) 368
HAV (mm) 70.5
Standover (mm) 785.5
Stack (mm) 615.3
Reach (mm) 405.6
I - Head tube (°) 73
J - Seat tube (°) 74.5
A - Seat tube (mm) 579
B - Top tube (mm) 576.3
C - Front Center (mm) 621.7
D - Trail (mm) 59.3
F - Fork offset (mm) 43
G - Chainstays (mm) 410
K - Head tube (mm) 193.5
L - Fork (mm) 368
HAV (mm) 68
Standover (mm) 812.5

Your frame has a lifetime warranty

Register for warranty

Files for downloading

Users manual

Download

Size guide

Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.

Size bike Cyclist's height
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
