795 BladeRS Dura Ace Di2 / R50D

SKU | 29224

Couleur Iconic Platinum White

US$11,500.00

Buy in shop


The Iconic series comes from the heart: our heritage and the many successes we have enjoyed blend with our contemporary ambition to offer the very highest level of performance.
A visual representation of our history, with a Mondrian-inspired design that is both recognizable and recognized throughout the cycling world.
It epitomizes our commitment to innovation, aesthetics and state-of-the-art products whose efficiency and style are born from our extensive experience of racing at the highest level.
In a subtle balance of nostalgia and modernity, the Iconic series encapsulates our expertise and quest for excellence, taking on the cycling world with 4 iconic colors that LOOK Cycle has proudly worn since 1984.

The fastest of our racing bikes, born to win.

As sharp... as a blade.

As sharp... as a blade.

Wind? What wind? The 795 BLADE RS is born to slice through the air. With painstaking wind tunnel testing on the frame and component, the bike is the most worthy ambassador of LOOK Cycle’s aerodynamic expertise, born from years of road and track cycling experience. Each tube section is specifically-shaped to reduce drag and optimize handling precision. Every detail counts when it comes to integration; from the integrated seatpost to the placement of the water bottles, the sharp lines and streamlined design serve the ultimate goal of ultra-high performance.

Carbon core

Carbon core

Wind? What wind? The 795 BLADE RS is born to slice through the air. With painstaking wind tunnel testing on the frame and component, the bike is the most worthy ambassador of LOOK Cycle’s aerodynamic expertise, born from years of road and track cycling experience. Each tube section is specifically-shaped to reduce drag and optimize handling precision. Every detail counts when it comes to integration; from the integrated seatpost to the placement of the water bottles, the sharp lines and streamlined design serve the ultimate goal of ultra-high performance.

Iconic Platinum White

Both minimalist and complex, the reinterpretation of the Iconic version of the 795 BladeRS combines our emblematic colours with a Platinum White finish that enhances the bike's sleek aesthetics. An evolution in line with our vision of art and cycling, merging creativity and performance in a single approach.

Technical specifications

Made by LOOK
Seatpost LOOK AEROPOST 4 CARBON seatpost, D-shape, Length 350mm, 13.5mm offset. Weight: 160gr.
Saddle SELLE ITALIA SLR BOOST SUPERFLOW CARBON

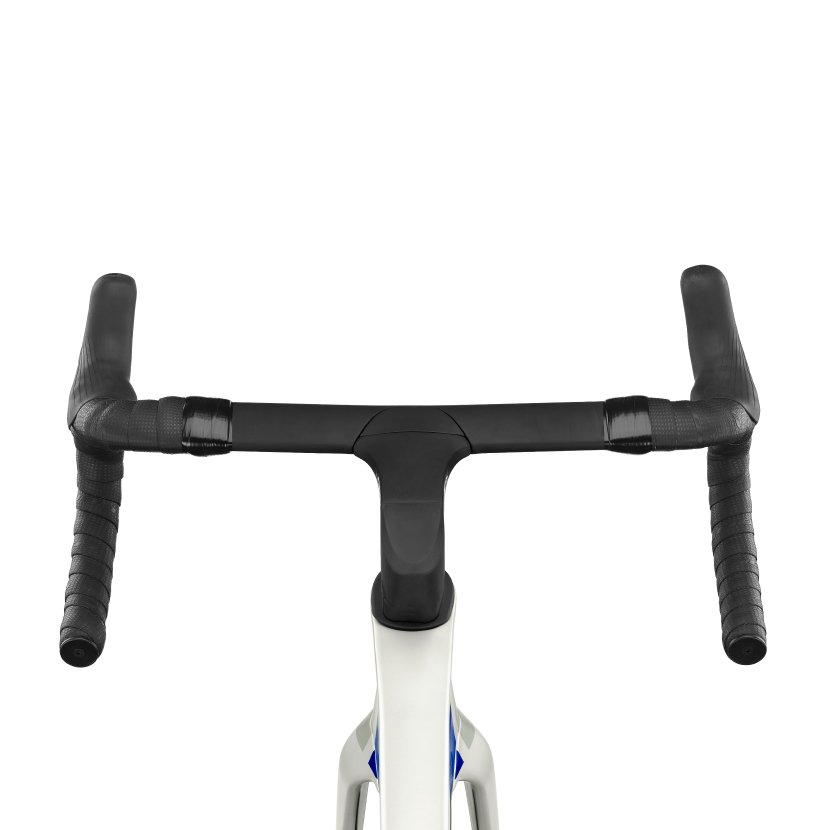

Handlebar LOOK COMBO AERO CARBON (XXS:38 XS:38 S:40 M:40 L:42 XL:44)
Stem LOOK Combo Aero Carbon stem. Angle -7°. Full integration. (Length: XXS: 80mm XS: 80mm S: 90mm M: 100mm L: 110mm XL: 120mm)
Frame LOOK 795 Blade RS Iconic Platinum White
Wheels R50D
Tires CONTINENTAL GP 5000 TR 700x28
Thru axles Front axle: X12 THRU AXLE 100mm P 1.5 Conical. Axle head: 6mm Allen | Back axle: X12 THRU AXLE 142mm P 1.5 Conical. Axle head: 6mm Allen
Shifters SHIMANO DURA ACE DI2 R9170
Brakes SHIMANO DURA ACE BR 9170
Bottom bracket BB T47
Crankset SHIMANO DURA ACE R9200 52 x 36 | (XXS : 165 mm – XS / S : 170 mm - M / L 172,5 mm - XL : 175 mm)

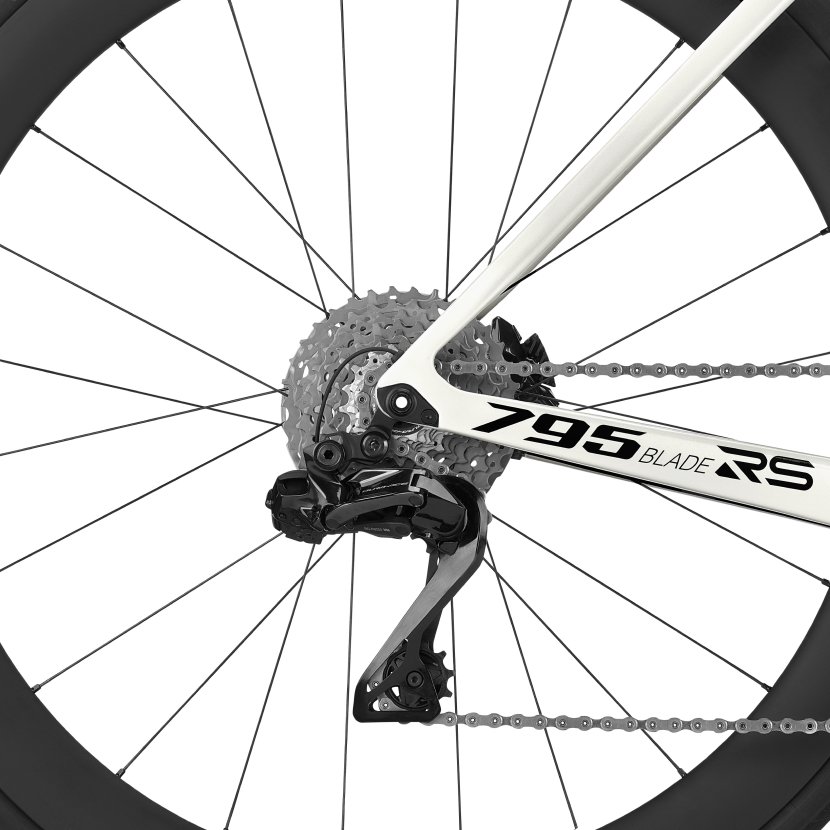

Derailleurs SHIMANO DURA ACE DI2 R9150
Cassette SHIMANO DURA ACE R9100 11 x 34
Chain SHIMANO DURA ACE HG 901
Sizes XXS - XS - S - M - L - XL

Geometry

Geometry

795 BLADE RS

Diamètre des roues : 682mm


XS S M L XL
Stack 505 529 553 577 601
Reach 370 380 390 400 410
I - Tube de direction (°) 71,75 71,75 73 73 73
J - Tube de selle (°) 74,5 74,5 74,5 74,5 74,5
A - Tube de selle 478,3 504,4 529 554,8 579,6
B - Tube horizontal 510 526,7 543,4 560 576,7
C - Front Center 569,8 587,6 586,7 603,9 621,7
D - Trail 59,8 59,8 59,3 59,3 59,3
F - Déport de fourche 50 50 43 43 43
G - Bases 410 410 410 410 410
K - Tube de direction 90,4 115,6 136,7 161,8 189,5
L - Fourche 368 368 368 368 368
HAV 73 73 70,5 70,5 68
Standover 741 765 790 815 841
Stack (mm) 505
Reach (mm) 370
I - Tube de direction (°) 71,75
J - Tube de selle (°) 74,5
A - Tube de selle (mm) 478,3
B - Tube horizontal (mm) 510
C - Front Center (mm) 569,8
D - Trail (mm) 59,8
F - Déport de fourche (mm) 50
G - Bases (mm) 410
K - Tube de direction (mm) 90,4
L - Fourche (mm) 368
HAV (mm) 73
Standover (mm) 741
Stack (mm) 529
Reach (mm) 380
I - Tube de direction (°) 71,75
J - Tube de selle (°) 74,5
A - Tube de selle (mm) 504,4
B - Tube horizontal (mm) 526,7
C - Front Center (mm) 587,6
D - Trail (mm) 59,8
F - Déport de fourche (mm) 50
G - Bases (mm) 410
K - Tube de direction (mm) 115,6
L - Fourche (mm) 368
HAV (mm) 73
Standover (mm) 765
Stack (mm) 553
Reach (mm) 390
I - Tube de direction (°) 73
J - Tube de selle (°) 74,5
A - Tube de selle (mm) 529
B - Tube horizontal (mm) 543,4
C - Front Center (mm) 586,7
D - Trail (mm) 59,3
F - Déport de fourche (mm) 43
G - Bases (mm) 410
K - Tube de direction (mm) 136,7
L - Fourche (mm) 368
HAV (mm) 70,5
Standover (mm) 790
Stack (mm) 577
Reach (mm) 400
I - Tube de direction (°) 73
J - Tube de selle (°) 74,5
A - Tube de selle (mm) 554,8
B - Tube horizontal (mm) 560
C - Front Center (mm) 603,9
D - Trail (mm) 59,3
F - Déport de fourche (mm) 43
G - Bases (mm) 410
K - Tube de direction (mm) 161,8
L - Fourche (mm) 368
HAV (mm) 70,5
Standover (mm) 815
Stack (mm) 601
Reach (mm) 410
I - Tube de direction (°) 73
J - Tube de selle (°) 74,5
A - Tube de selle (mm) 579,6
B - Tube horizontal (mm) 576,7
C - Front Center (mm) 621,7
D - Trail (mm) 59,3
F - Déport de fourche (mm) 43
G - Bases (mm) 410
K - Tube de direction (mm) 189,5
L - Fourche (mm) 368
HAV (mm) 68
Standover (mm) 841

Guide des tailles

Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.

Tailles Entrejambe Taille du cycliste
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
XS
S
M
L
XL
