Performance 101

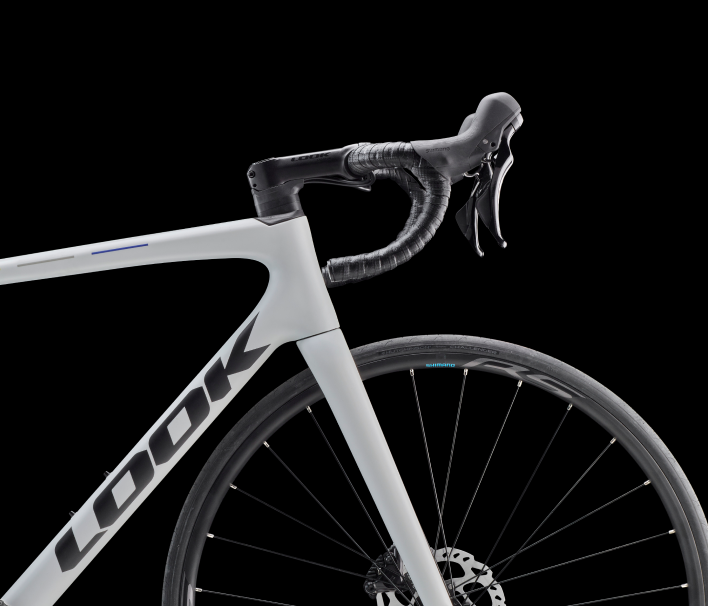

The light and responsive carbon frame of the new 785 Huez maximizes your explosive accelerations when the gradient increases. Using high-modulus fibers and minimalist Nano tubes, the construction of the frame offers optimized power transfer alongside flexibility to enable intense and prolonged efforts in the mountains.

Best choice for climbing
The geometry of the new 785 Huez makes it the ideal choice for climbers, designed for explosive accelerations on steep slopes, as well as for long and repeated efforts. Compact and with precise handling, it provides similar sensations to riding a race bike, but its position is also designed to offer the indispensable comfort required for long days in the high mountains.
Technical specifications
Handlebar | LOOK LS2 ALLOY (XS S:40 M/L:42 XL:44) |
---|---|
Stem | LOOK LS3 ALLOY (XS 90 / S 100 / M L 110 / XL 120) |
Seatpost | LOOK LS3 ALLOY 27.2 mm 350 mm |
Saddle | SELLE ITALIA MODEL X SUPERFLOW |
Wheels | SHIMANO RS 171 |
---|---|
Tires | HUTCHINSON CHALLENGER TUBETYPE 700x25 |
Thru axles | X12 : M12 x 1.5 142x12 R / 100x12 F |
Derailleurs | SHIMANO 105 R7100 |
---|---|
Shifters | SHIMANO 105 R7120 |
Crankset | SHIMANO 105 R7100 50 x 34 |
Cassette | SHIMANO 105 R7100 11 x 34 |
Bottom bracket | BB T47 TOKEN T47V24 PREMIUM BEARINGS |
Rotors | SHIMANO RT 70 F: 160 mm R : 140 mm |
Chain | SHIMANO M7100 12 SPEED |
Sizes | XS - S - M - L - XL |
---|
Geometry

785 Huez
Diamètre des roues : 686 mm / 27 pouces
XS | S | M | L | XL | |
---|---|---|---|---|---|
Stack | 519.2 | 543.3 | 567.3 | 591.3 | 615.3 |
Reach | 365.3 | 375.3 | 385.6 | 395.5 | 405.6 |
I - Head tube (°) | 71.5 | 71.5 | 73 | 73 | 73 |
J - Seat tube (°) | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
A - Seat tube | 480 | 504 | 530 | 554 | 579 |
B - Top tube | 509.3 | 526 | 543 | 559.6 | 576.3 |
C - Front Center | 569.8 | 587.6 | 586.7 | 603.9 | 621.7 |
D - Trail | 59.8 | 59.8 | 59.3 | 59.3 | 59.3 |
F - Fork offset | 50 | 50 | 43 | 43 | 43 |
G - Chainstays | 410 | 410 | 410 | 410 | 410 |
K - Head tube | 94.4 | 119.6 | 140.7 | 165.8 | 193.5 |
L - Fork | 368 | 368 | 368 | 368 | 368 |
HAV | 73 | 73 | 70.5 | 70.5 | 68 |
Standover | 709.9 | 733.7 | 761.7 | 785.5 | 812.5 |
Stack (mm) | 519.2 |
---|---|
Reach (mm) | 365.3 |
I - Head tube (°) | 71.5 |
J - Seat tube (°) | 74.5 |
A - Seat tube (mm) | 480 |
B - Top tube (mm) | 509.3 |
C - Front Center (mm) | 569.8 |
D - Trail (mm) | 59.8 |
F - Fork offset (mm) | 50 |
G - Chainstays (mm) | 410 |
K - Head tube (mm) | 94.4 |
L - Fork (mm) | 368 |
HAV (mm) | 73 |
Standover (mm) | 709.9 |
Stack (mm) | 543.3 |
---|---|
Reach (mm) | 375.3 |
I - Head tube (°) | 71.5 |
J - Seat tube (°) | 74.5 |
A - Seat tube (mm) | 504 |
B - Top tube (mm) | 526 |
C - Front Center (mm) | 587.6 |
D - Trail (mm) | 59.8 |
F - Fork offset (mm) | 50 |
G - Chainstays (mm) | 410 |
K - Head tube (mm) | 119.6 |
L - Fork (mm) | 368 |
HAV (mm) | 73 |
Standover (mm) | 733.7 |
Stack (mm) | 567.3 |
---|---|
Reach (mm) | 385.6 |
I - Head tube (°) | 73 |
J - Seat tube (°) | 74.5 |
A - Seat tube (mm) | 530 |
B - Top tube (mm) | 543 |
C - Front Center (mm) | 586.7 |
D - Trail (mm) | 59.3 |
F - Fork offset (mm) | 43 |
G - Chainstays (mm) | 410 |
K - Head tube (mm) | 140.7 |
L - Fork (mm) | 368 |
HAV (mm) | 70.5 |
Standover (mm) | 761.7 |
Stack (mm) | 591.3 |
---|---|
Reach (mm) | 395.5 |
I - Head tube (°) | 73 |
J - Seat tube (°) | 74.5 |
A - Seat tube (mm) | 554 |
B - Top tube (mm) | 559.6 |
C - Front Center (mm) | 603.9 |
D - Trail (mm) | 59.3 |
F - Fork offset (mm) | 43 |
G - Chainstays (mm) | 410 |
K - Head tube (mm) | 165.8 |
L - Fork (mm) | 368 |
HAV (mm) | 70.5 |
Standover (mm) | 785.5 |
Stack (mm) | 615.3 |
---|---|
Reach (mm) | 405.6 |
I - Head tube (°) | 73 |
J - Seat tube (°) | 74.5 |
A - Seat tube (mm) | 579 |
B - Top tube (mm) | 576.3 |
C - Front Center (mm) | 621.7 |
D - Trail (mm) | 59.3 |
F - Fork offset (mm) | 43 |
G - Chainstays (mm) | 410 |
K - Head tube (mm) | 193.5 |
L - Fork (mm) | 368 |
HAV (mm) | 68 |
Standover (mm) | 812.5 |
Other versions
Your frame has a lifetime warranty
Register for warrantyDownload files
Users manual
DownlaodGuide des tailles
Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.
Tailles du vélo | Tailles du cycliste | |
---|---|---|
XS | < 166 | |
S | 164 - 173 | |
M | 171 - 180 | |
L | 178 - 187 | |
XL | > 185 |
XS | < 166 |
---|---|
S | 164 - 173 |
M | 171 - 180 |
L | 178 - 187 |
XL | > 185 |
