796 MONOBLADE RS - PROTEAM WHITE GLOSSY
796 MONOBLADE RS - ERUPTION LIMITED EDITION

796 MONOBLADE RS - FRAMESET

SKU | 20998

The 796 MONOBLADE is your weapon of choice to wreak havoc in time trials. Our engineers put 30 years' worth of experience and expertise into this carbon frame, resulting in 100% integrated components for ultimate aerodynamics. Technologies are packed into the cockpit, brakes, seatpost and crankset; they blend as one into the frame for full cable integration and an ultra-stiff ride.
*Non-contractual pictures.

  • Proteam White Glossy
  • Eruption Limited Edition

Proteam White Glossy

$6,999.00

Buy in shop
Why you'll love it?

Why you'll love it?

Integration is everything

  • Discover what aerodynamic really means with a frame that is but one with its components
  • An expert assembly and layup of high modulus carbon fibers
  • Watch eyes turn, and hear your Ironman triathlon opponents gasp, as you fly by
All you need to know about 796 MONOBLADE RS

Technical specifications

Made by LOOK

Frame VERY HIGH MODULUS CARBON 1.5K WEAVE FINISH
Seatpost LOOK AEROPOST WITH REVERSIBLE HEAD. REPLACEABLE SADDLE TUBE
Stem LOOK AEROFLAT STEM ALUMINIUM AVAILABLE LENGTHS: FROM 85 TO 110 MM
Handlebar AEROFLATBAR REVERSIBLE CARBON HANDLEBAR AERGO MULTI-POSITION CARBON ARM REST AND EXTENSION

Wheels

Tires COMPATIBLE WITH TYRES WITH A MAXIMUM SIZE OF 25 MM

Transmission & brakes

Crankset LOOK ZED 3 (WITHOUT PLATES)
Bottom bracket BB 65 LOOK SPECIFIC

Components

Seatpost LOOK AEROPOST WITH REVERSIBLE HEAD. REPLACEABLE SADDLE TUBE
Stem LOOK AEROFLAT STEM ALUMINIUM AVAILABLE LENGTHS: FROM 85 TO 110 MM
Handlebar AEROFLATBAR REVERSIBLE CARBON HANDLEBAR AERGO MULTI-POSITION CARBON ARM REST AND EXTENSION

Weight & sizes

Sizes XS /S - S/M - L/ XL

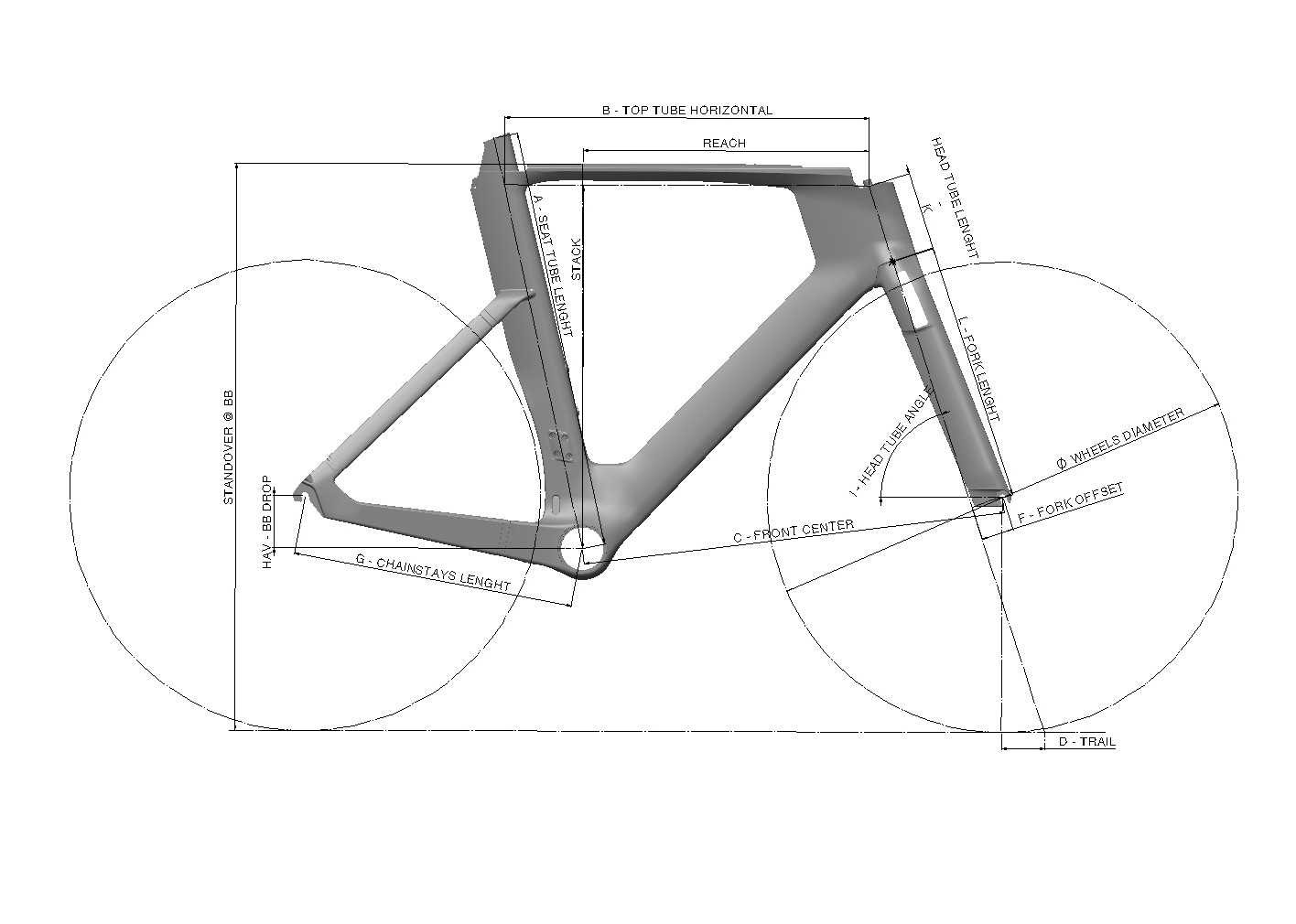

Geometry

Geometry 796 Monoblade RS

796 MONOBLADE RS

Wheels diameter: 676 mm / 26,6 inch


XS-S S-M L-XL
Stack 488 522.5 557
Reach 382 409 436
I - Head tube (°) 72 72 72
J - Seat tube (°) 76.5 76.5 76.5
A - Seat tube 570 606 641
B - Top tube horizontal 498 533 568
C - Front Center 570 608 646
D - Trail 61.5 61.5 61.5
F - Fork offset 46 46 46
G - Chainstays 405 405 405
K - Head tube 77.7 114 150.3
L - Fork 371.5 371.5 371.5
HAV 75 75 75
Standover 781 815.5 850
Stack (mm) 488
Reach (mm) 382
I - Head tube (°) 72
J - Seat tube (°) 76.5
A - Seat tube (mm) 570
B - Top tube horizontal (mm) 498
C - Front Center (mm) 570
D - Trail (mm) 61.5
F - Fork offset (mm) 46
G - Chainstays (mm) 405
K - Head tube (mm) 77.7
L - Fork (mm) 371.5
HAV (mm) 75
Standover (mm) 781
Stack (mm) 522.5
Reach (mm) 409
I - Head tube (°) 72
J - Seat tube (°) 76.5
A - Seat tube (mm) 606
B - Top tube horizontal (mm) 533
C - Front Center (mm) 608
D - Trail (mm) 61.5
F - Fork offset (mm) 46
G - Chainstays (mm) 405
K - Head tube (mm) 114
L - Fork (mm) 371.5
HAV (mm) 75
Standover (mm) 815.5
Stack (mm) 557
Reach (mm) 436
I - Head tube (°) 72
J - Seat tube (°) 76.5
A - Seat tube (mm) 641
B - Top tube horizontal (mm) 568
C - Front Center (mm) 646
D - Trail (mm) 61.5
F - Fork offset (mm) 46
G - Chainstays (mm) 405
K - Head tube (mm) 150.3
L - Fork (mm) 371.5
HAV (mm) 75
Standover (mm) 850

Your frame has a lifetime warranty

Register for warranty

Files for downloading

User's guide

Download

Size guide

Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.

Size bike Cyclist's height
XS-S < 172
S-M 170 - 182
L-XL > 180
XS-S < 172
S-M 170 - 182
L-XL > 180
