785 HUEZ RS - FRAMESET
SKU | 24444

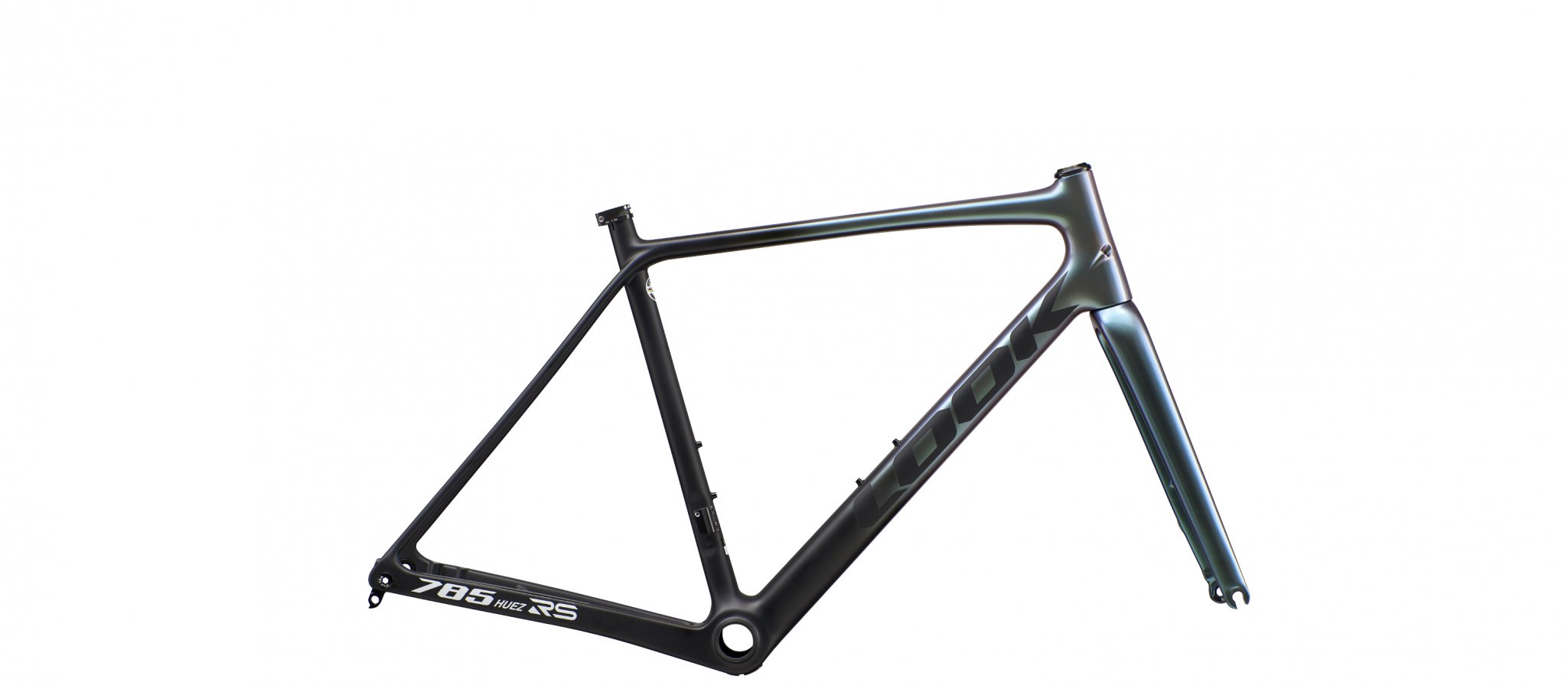

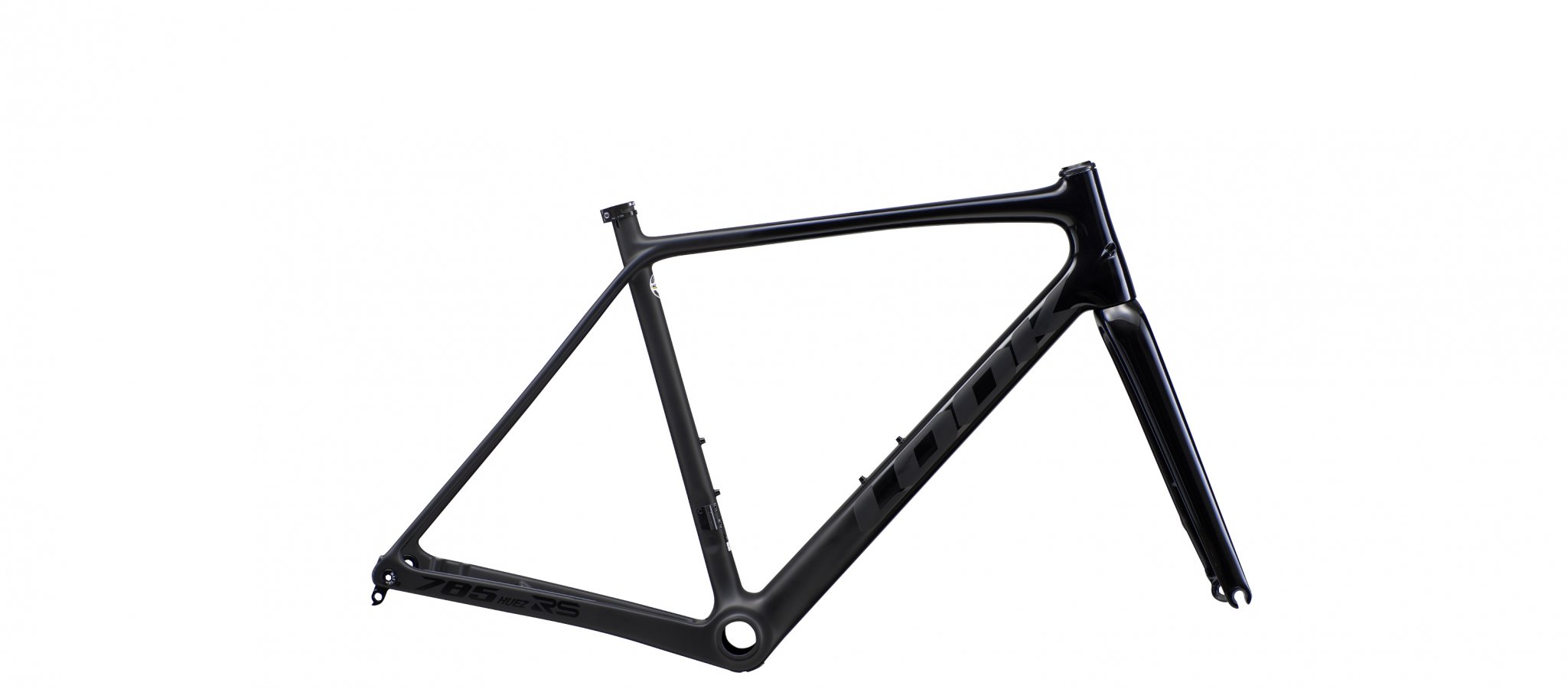

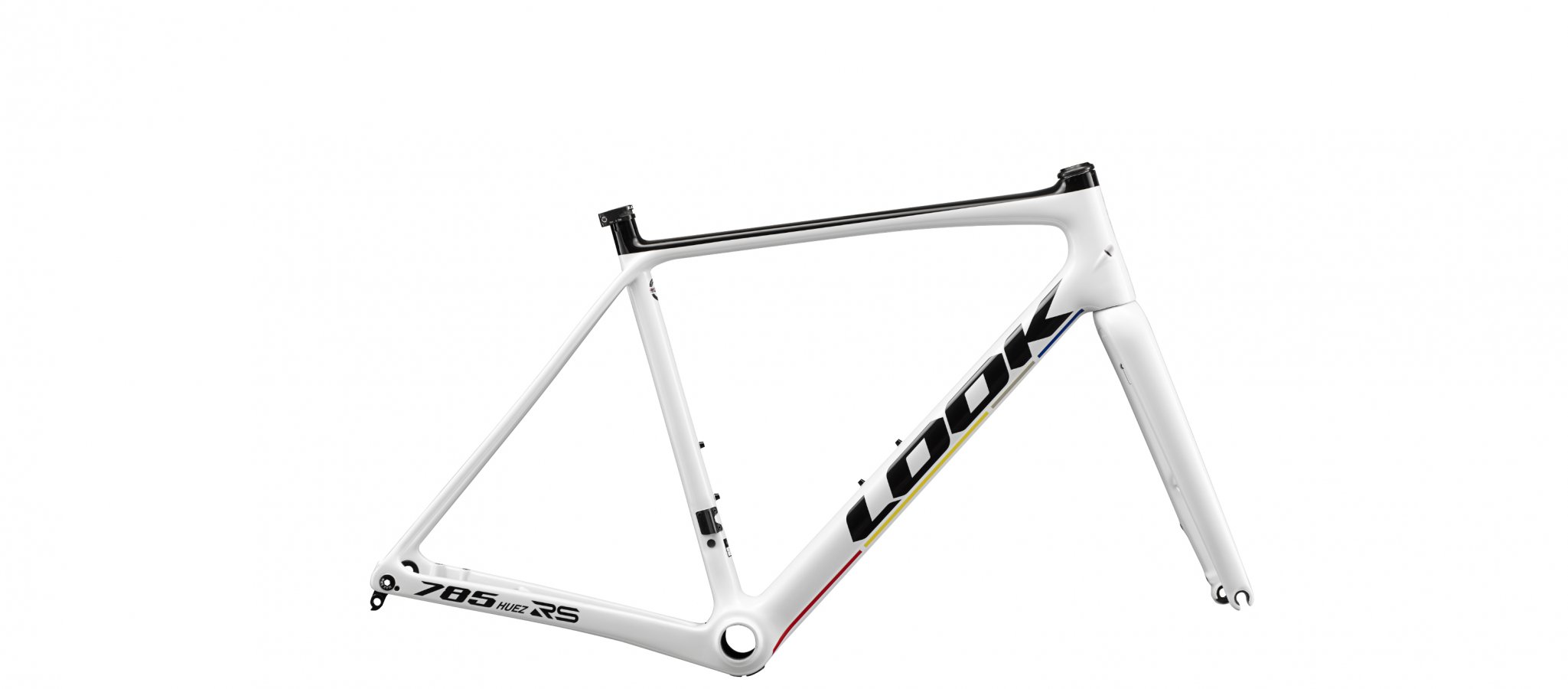

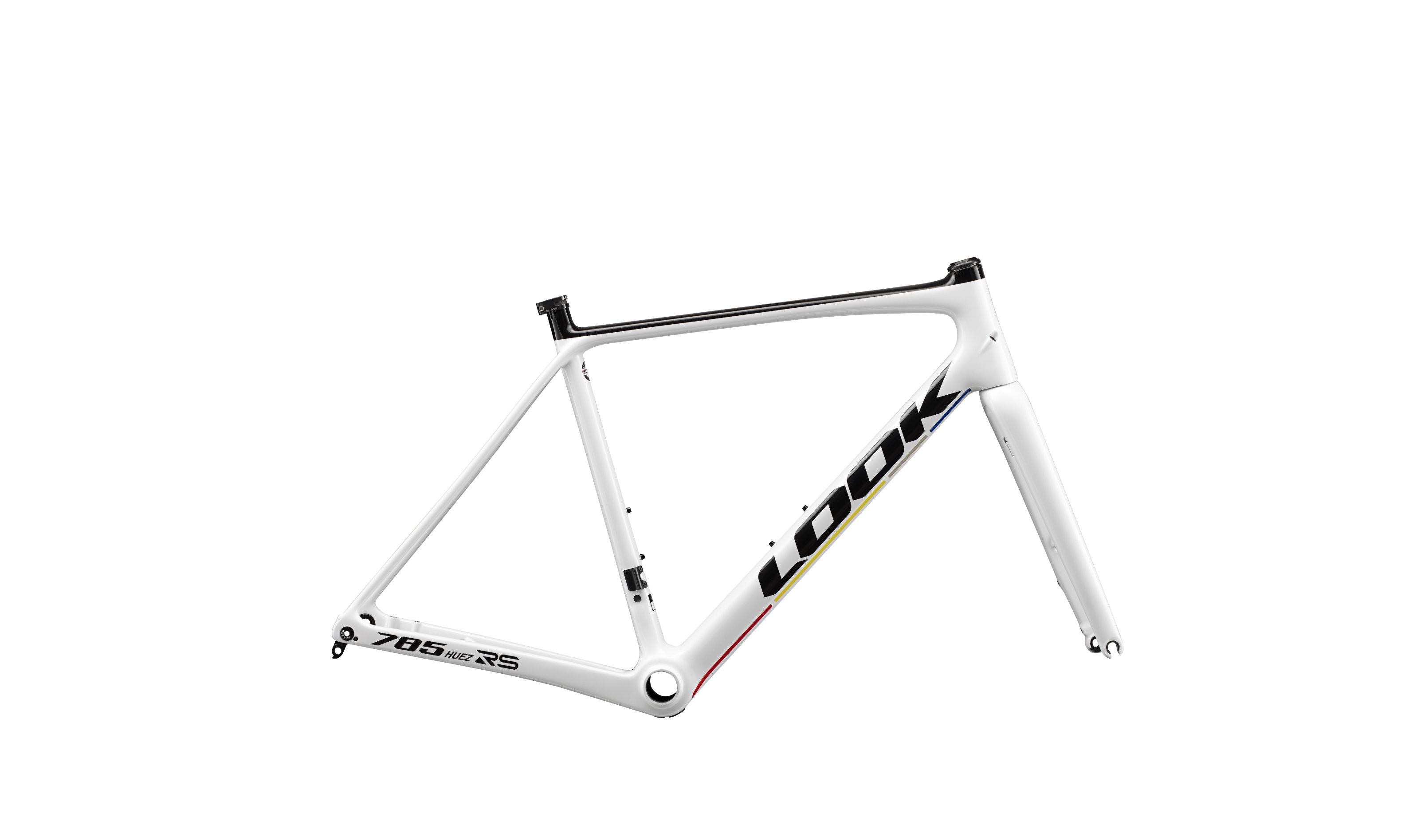

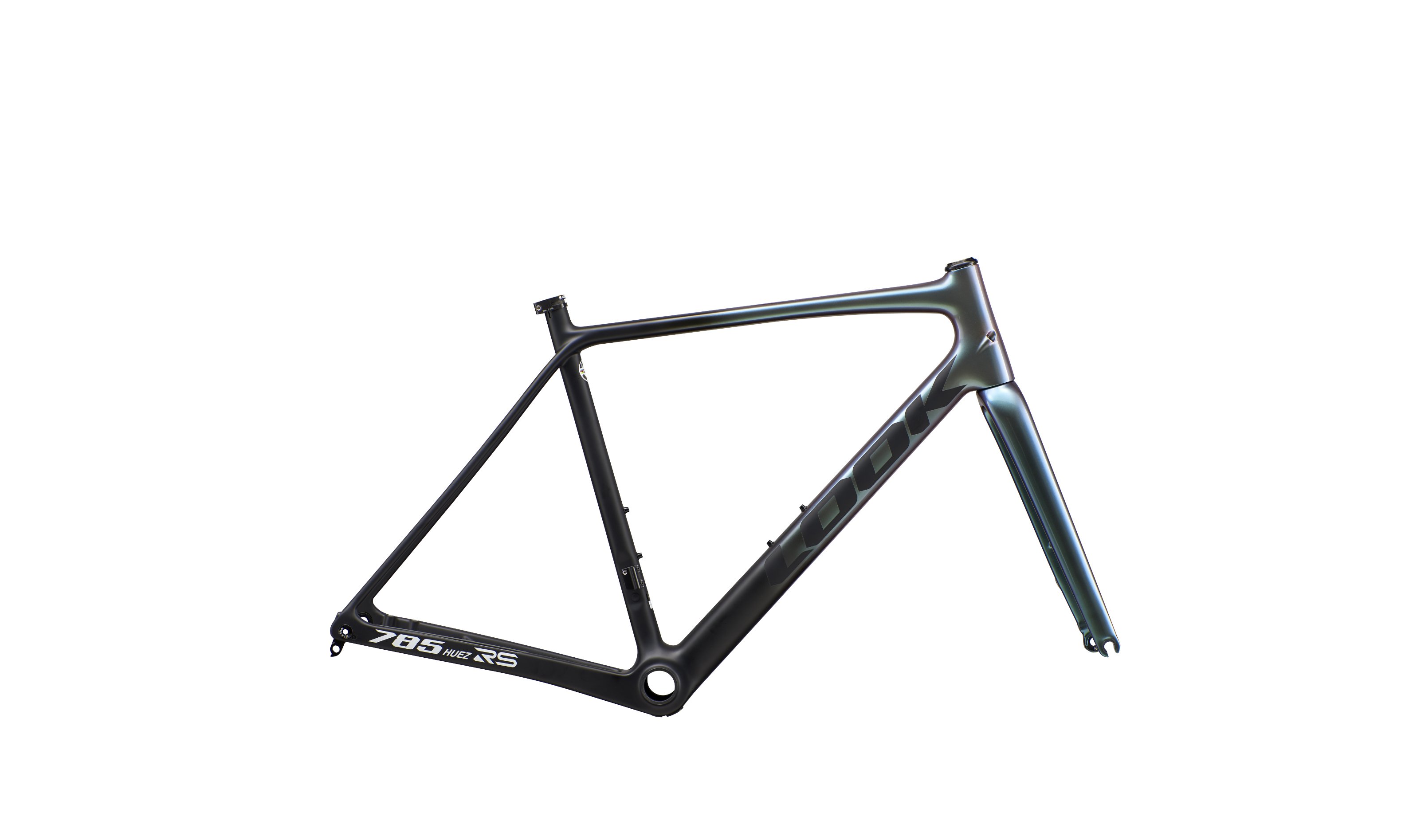

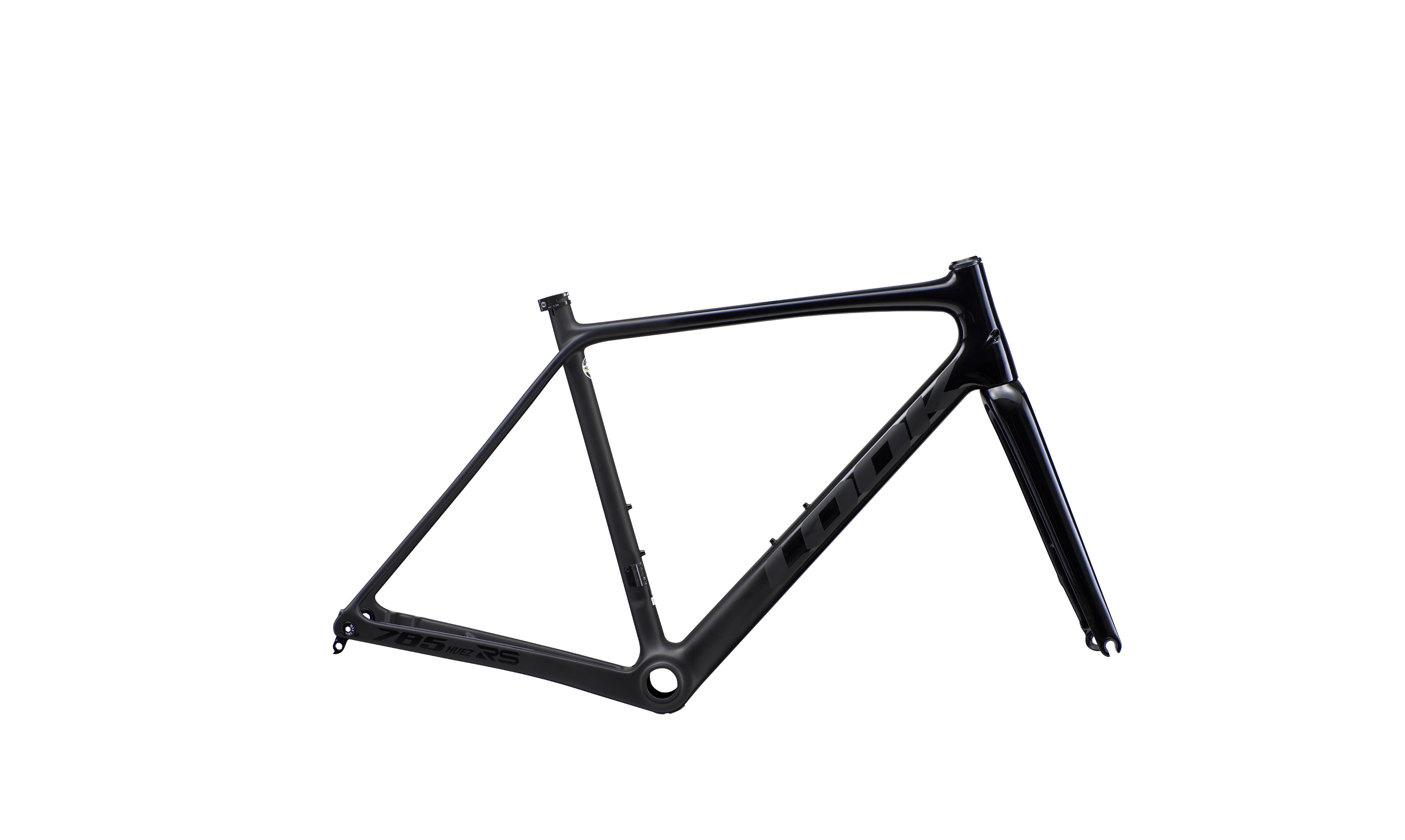

Are you looking to build your own bike and remain a fan of rim brakes? This is where the 785 HUEZ RS frameset comes in: available in 3 different colors and built exclusively for a rim brake set up, it is compatible with mechanical and electronic shifting. The perfect base for your future custom climbing machine.
US$3,100.00
Buy in shop
Why you'll love it ?
- Ensure that you start with a rock-solid base: a top-of-the-range frame resulting from over 30 years of carbon fiber experience and innovation
- Choose from three very different colors for specific character
- Mount tires up to 28mm wide with this rim brake model
Technical specifications
| Frame | UD carbon-finish high modulus carbon frame (ultra light) / Integrated headset |
|---|
| Tires | Compatible with tires with a maximum size of 28 mm |
|---|
| Bottom bracket | BB PF 86 |
|---|
| Weight | 870 grs (size S) |
|---|---|
| Sizes | XS - S - M - L - XL |
Geometry
785 HUEZ RS
Wheels diameter : 676 mm / 26,6 inch
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 510 | 534 | 558 | 582 | 606 |
| Reach | 365 | 375 | 385 | 395 | 405 |
| I - Head tube (°) | 71,8 | 71,8 | 73 | 73 | 73 |
| J - Seat tube (°) | 74 | 74 | 73 | 73 | 73 |
| A - Seat tube | 480 | 504 | 530 | 554 | 579 |
| B - Top Tube horizontal | 511.2 | 528.1 | 555.7 | 572.9 | 590.3 |
| C - Front Center | 567.6 | 585.4 | 584.3 | 601.5 | 618.9 |
| D - Trail | 58.5 | 58.5 | 58.4 | 58.4 | 58.4 |
| F - Fork offset | 50 | 50 | 43 | 43 | 43 |
| G - Chainstays | 405 | 405 | 405 | 405 | 405 |
| K - Head tube | 116.9 | 142.1 | 160.7 | 184.7 | 210.9 |
| L - Fork | 368 | 368 | 368 | 368 | 368 |
| HAV | 65 | 65 | 65 | 65 | 65 |
| Standover | 712.8 | 735.4 | 769.7 | 782.6 | 807.2 |
| Stack (mm) | 510 |
|---|---|
| Reach (mm) | 365 |
| I - Head tube (°) | 71,8 |
| J - Seat tube (°) | 74 |
| A - Seat tube (mm) | 480 |
| B - Top Tube horizontal (mm) | 511.2 |
| C - Front Center (mm) | 567.6 |
| D - Trail (mm) | 58.5 |
| F - Fork offset (mm) | 50 |
| G - Chainstays (mm) | 405 |
| K - Head tube (mm) | 116.9 |
| L - Fork (mm) | 368 |
| HAV (mm) | 65 |
| Standover (mm) | 712.8 |
| Stack (mm) | 534 |
|---|---|
| Reach (mm) | 375 |
| I - Head tube (°) | 71,8 |
| J - Seat tube (°) | 74 |
| A - Seat tube (mm) | 504 |
| B - Top Tube horizontal (mm) | 528.1 |
| C - Front Center (mm) | 585.4 |
| D - Trail (mm) | 58.5 |
| F - Fork offset (mm) | 50 |
| G - Chainstays (mm) | 405 |
| K - Head tube (mm) | 142.1 |
| L - Fork (mm) | 368 |
| HAV (mm) | 65 |
| Standover (mm) | 735.4 |
| Stack (mm) | 558 |
|---|---|
| Reach (mm) | 385 |
| I - Head tube (°) | 73 |
| J - Seat tube (°) | 73 |
| A - Seat tube (mm) | 530 |
| B - Top Tube horizontal (mm) | 555.7 |
| C - Front Center (mm) | 584.3 |
| D - Trail (mm) | 58.4 |
| F - Fork offset (mm) | 43 |
| G - Chainstays (mm) | 405 |
| K - Head tube (mm) | 160.7 |
| L - Fork (mm) | 368 |
| HAV (mm) | 65 |
| Standover (mm) | 769.7 |
| Stack (mm) | 582 |
|---|---|
| Reach (mm) | 395 |
| I - Head tube (°) | 73 |
| J - Seat tube (°) | 73 |
| A - Seat tube (mm) | 554 |
| B - Top Tube horizontal (mm) | 572.9 |
| C - Front Center (mm) | 601.5 |
| D - Trail (mm) | 58.4 |
| F - Fork offset (mm) | 43 |
| G - Chainstays (mm) | 405 |
| K - Head tube (mm) | 184.7 |
| L - Fork (mm) | 368 |
| HAV (mm) | 65 |
| Standover (mm) | 782.6 |
| Stack (mm) | 606 |
|---|---|
| Reach (mm) | 405 |
| I - Head tube (°) | 73 |
| J - Seat tube (°) | 73 |
| A - Seat tube (mm) | 579 |
| B - Top Tube horizontal (mm) | 590.3 |
| C - Front Center (mm) | 618.9 |
| D - Trail (mm) | 58.4 |
| F - Fork offset (mm) | 43 |
| G - Chainstays (mm) | 405 |
| K - Head tube (mm) | 210.9 |
| L - Fork (mm) | 368 |
| HAV (mm) | 65 |
| Standover (mm) | 807.2 |
OTHER VERSIONS
You'll find what you're looking for
Our products are available in several versions to meet the needs of passionate customers like you. Whether it's for a choice of colors or technical specifications, navigate freely to see all the options available to you.
Your frame has a lifetime warranty
Register for warrantySize guide
Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.
| Size bike | Cyclist's height | |
|---|---|---|
| XS | < 166 | |
| S | 164 - 173 | |
| M | 171 - 180 | |
| L | 178 - 187 | |
| XL | > 185 |
| XS | < 166 |
|---|---|
| S | 164 - 173 |
| M | 171 - 180 |
| L | 178 - 187 |
| XL | > 185 |
