E-765 OPTIMUM RED GLOSSY

SKU | 20149

Our famous endurance bike enjoys a little electrical assistance in the E-765 OPTIMUM model. The motor of choice is the FAZUA Evation, light and versatile with a removable battery that boasts up to 80km of autonomy. The RED GLOSSY paintwork is completed by a set of carbon VITTORIA wheels and a SHIMANO ULTEGRA Di2 electronic groupset.

  • Red Glossy

Red Glossy

€7,999.00

Buy in shop

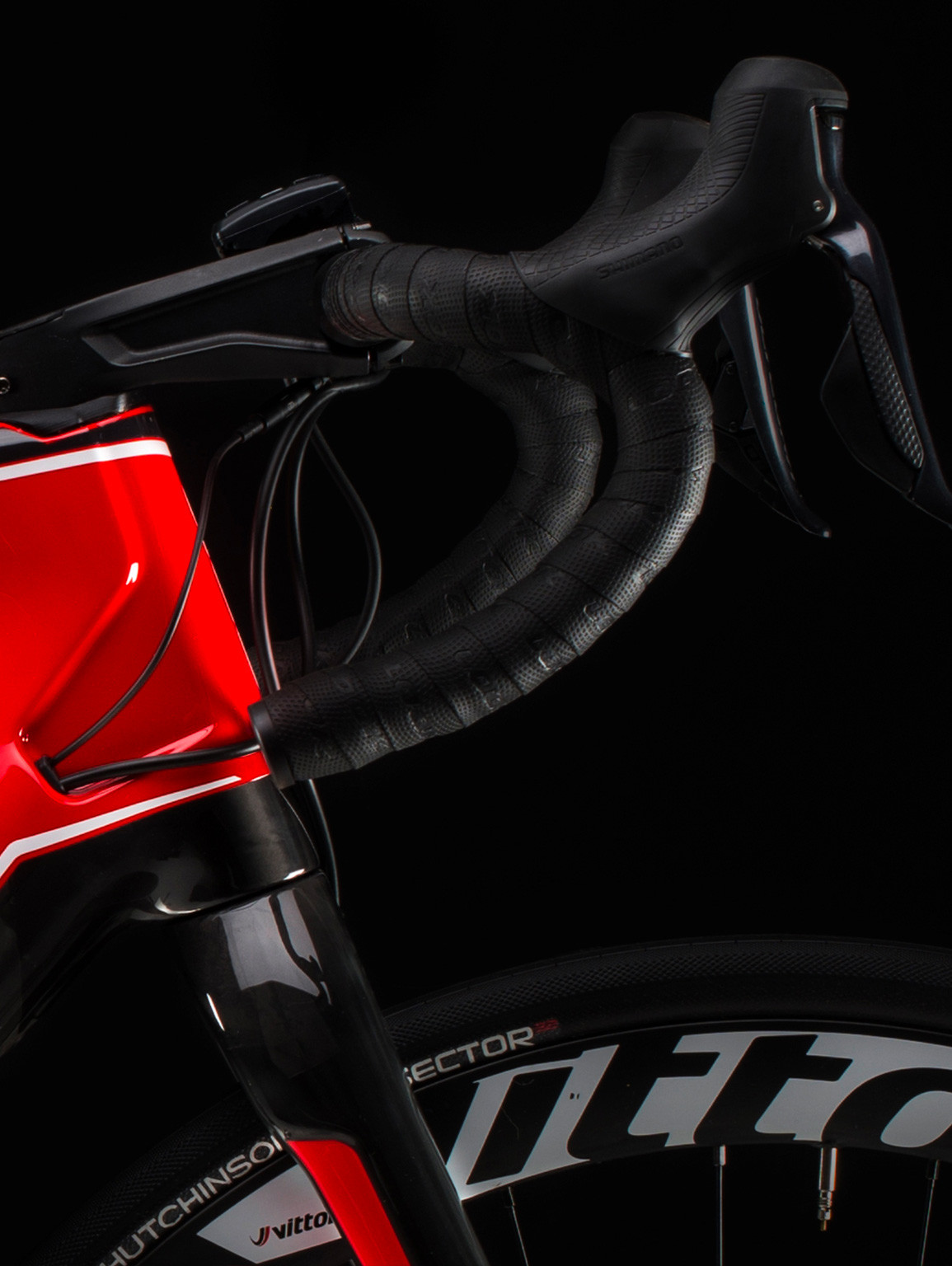

Why you'll love it?

Push the boudaries of the impossible

  • Ride with the assistance of a FAZUA motor, the most compact, easy-to-remove and boasting the longest battery life on the market today. The dedicated app shows the charge level and temperature.
  • Increased comfort and traction thanks to seatstays featuring the 3D WAVE technology
  • Electric motor, yet also electric shifting with the reliable Shimano ULTEGRA Di2

Technical specifications

Made by LOOK

Seatpost LOOK LS1 CARBON SUPER LIGHT 27.2 mm 350 mm
Stem LOOK LDS ( XS 80 / S 90 / M 100 / L 110 / XL 120 )
Handlebar LOOK LS2 ALLOY ( XS-S 40 / M-L 42 / XL 44 )

Wheels

Wheels VITTORIA ELUSION CARBON 42 mm (Tubeless) (Disc) E REAR HUB
Tires HUTCHINSON SECTOR 32 TUBELESS READY

Transmission & brakes

Crankset FSA CARBON ( XS-S 170 mm / M-L-XL 175 mm )
Chainrings FSA CARBON 50X34
Chain SHIMANO ULTEGRA HG 601
Bottom bracket FAZUA ISIS AXLE
Cassette SHIMANO ULTEGRA R 8000 11X32
Shifters SHIMANO ULTEGRA DI2
Derailleurs SHIMANO ULTEGRA DI2 R8050
Rotors SHIMANO CENTERLOCK RT 800 F : 160 mm R : 140 mm

Components

Seatpost LOOK LS1 CARBON SUPER LIGHT 27.2 mm 350 mm
Saddle FIZIK ANTARES R7
Stem LOOK LDS ( XS 80 / S 90 / M 100 / L 110 / XL 120 )
Handlebar LOOK LS2 ALLOY ( XS-S 40 / M-L 42 / XL 44 )

Weight & Sizes

Weight 13.44 kg * (SIZE M / WITHOUT PEDALS) * ESTIMATE
Sizes XS - S - M - L - XL

Electric

Motor FAZUA EVATION

Geometry

Géométrie E-765 OPTIMUM Red Glossy

E-765 OPTIMUM

Wheels diameter: 690 mm / 27,2 inch


XS S M L XL
Stack 530 554 578 602 626
Reach 355 365 375 385 395
I - Head tube (°) 70.3 70.3 70.3 70.3 70.3
J - Seat tube (°) 74 74 753 73 73
A - Seat tube 470 490 510 535 560
B - Top tube horizontal 507 524 552 569 586.5
C - Front Center 577 595.5 614 632.5 651
D - Trail 70 70 70 70 70
F - Fork offset 50 50 50 50 50
G - Chainstays 415 415 415 415 415
K - Head tube 111.5 137 162.5 188 213.5
L - Fork 395 395 395 395 395
HAV 70 70 70 70 70
Stack (mm) 530
Reach (mm) 355
I - Head tube (°) 70.3
J - Seat tube (°) 74
A - Seat tube (mm) 470
B - Top tube horizontal (mm) 507
C - Front Center (mm) 577
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 111.5
L - Fork (mm) 395
HAV (mm) 70
Stack (mm) 554
Reach (mm) 365
I - Head tube (°) 70.3
J - Seat tube (°) 74
A - Seat tube (mm) 490
B - Top tube horizontal (mm) 524
C - Front Center (mm) 595.5
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 137
L - Fork (mm) 395
HAV (mm) 70
Stack (mm) 578
Reach (mm) 375
I - Head tube (°) 70.3
J - Seat tube (°) 753
A - Seat tube (mm) 510
B - Top tube horizontal (mm) 552
C - Front Center (mm) 614
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 162.5
L - Fork (mm) 395
HAV (mm) 70
Stack (mm) 602
Reach (mm) 385
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 535
B - Top tube horizontal (mm) 569
C - Front Center (mm) 632.5
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 188
L - Fork (mm) 395
HAV (mm) 70
Stack (mm) 626
Reach (mm) 395
I - Head tube (°) 70.3
J - Seat tube (°) 73
A - Seat tube (mm) 560
B - Top tube horizontal (mm) 586.5
C - Front Center (mm) 651
D - Trail (mm) 70
F - Fork offset (mm) 50
G - Chainstays (mm) 415
K - Head tube (mm) 213.5
L - Fork (mm) 395
HAV (mm) 70

Your frame has a lifetime warranty

Register for warranty

Files for downloading

Product catalogue

Download

Product information

Download

User's guide

Download

Size guide

Please note this is an approximate size guide. Please contact your dealer for a more precise sizing information.

Size bike Cyclist's height
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
XS < 166
S 164 - 173
M 171 - 180
L 178 - 187
XL > 185
